iPhone 7 Plus Home/Touch ID Sensor ersetzen

Geschrieben von: Paige Reisman
  • Kommentare: 244
iPhone 7 Plus Home/Touch ID Sensor ersetzen

Schwierigkeitsgrad

Mittel

Schritte

29

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

Der "Home Button" des iPhone 7 Plus ist in Wirklichkeit ein Halbleitersensor, der auch TouchID (Fingerabdrucksensor) - Funktionen hat.

Die meisten Ersatz-Home Buttons funktionieren nicht, prüfe deswegen sehr genau, bevor du mit der Reparatur beginnst. Der Original-Home Button deines iPhones ist ab Werk mit dem Logic Board gekoppelt - und ohne Apples eigenem Kalibrierungsverfahren kann noch nicht mal ein original Apple Home Button von einem anderen iPhone funktionieren. Um einen defekten Home Button zu ersetzen, solltest du einen speziell angefertigten , universellen Home Button verwenden. TouchID wird allerdings damit nicht funktionieren.

Wenn du nur ein defektes Display austauschen willst, kannst du mit Hilfe dieser Anleitung deinen funktionierenden Original-Home Button sorgfältig entfernen und auf das neue Display übertragen. Er wird voll funktionsfähig sein, inklusive TouchID.

Um zu vermeiden, dass das Displaykabel aus Versehen gespannt wird oder reisst, ist es am besten, die Displayeinheit vollständig abzunehmen, bevor du die Reparatur des Home / Touch ID-Sensor beginnst. Wenn du dich allerdings sicher genug fühlst, kannst du den Teil der Display-Demontage in dieser Anleitung überspringen und direkt zu dem Abschnitt mit dem Home / Touch ID gehen.

  1. lmhcoVgsVMmGK1sw

    • Vor dem Beginn sollte der Ladestand des iPhones unter 25% liegen. Ein geladener Lithium-Ionen Akku kann bei Beschädigung brennen oder explodieren.

    • Schalte das iPhone aus, bevor du es auseinandernimmst.

    • Entferne die zwei 3,4 mm Pentalobe Schrauben an der Unterseite des iPhones.

    • Nach dem Öffnen des Gerätes ist das iPhone nicht mehr wasserdicht. Halte Ersatzdichtungen bereit, oder sei nach der Reparatur extra vorsichtig, wenn dein iPhone Flüssigkeiten ausgesetzt ist.

    The recommendation of discharging the battery is completely unnecessary. Even a 25% charged battery can explode. Completely ridiculous suggestion.

    pargoff -

    The risk of thermal runaway on these batteries decreases with the battery's SOC (state of charge). Below 50% charge the risk is fairly low, and at 25% charge the risk of a thermal event is near zero. If I recall correctly, the same suggestion appears in Apple's official (non-public) service manuals for the iPhone.

    Jeff Suovanen -

    @jeffsu Yes, that is correct. Apple does require all certified staff to discharge the battery below 25%. This is an industry standard for all LiION batteries. If you don’t want to do this, just make sure to not puncture the battery and disconnect it first thing.

    Ben Meinhart -

    Hang on a second here, doesn’t the Ifixit part I ordered come with the seals? The display assembly? It doesn’t. Now I have to wait another week?!

    Vanessa Pinter -

    How do you turn off if the screen isn’t responding to touch?

    adam -

    The replacement battery came with the seal—but how do you put it on???

    lkollar -

    Instructions for replacing the seal are here: Austausch der iPhone Display Klebestreifen

    bester -

    I just found the instructions on how to install the seals AFTER I was completed and had to figure it out. Maybe, just maybe you should link this somewhere on the guild instead of buried in a comment. Just a thought.

    Charles Meitin -

    Step 1 is: Read through all the steps and comments or the method prior to starting on this Step 1. There's a lot of much needed information and experience that you can learn from which will reduce the chance of struggling, wasting time or even breaking your device.

    My favourites are:

    Use a hot water bottle.

    Label all screws you remove with their size and location on a piece of paper with double sided sticky tape.

    Test the lightning assembly at step 13

    There is a Standoff driver bit in the box, don't use a screwdriver.

    etc...

    Neil Eriksen -

    A tip for looking out for all those little screws. I used an ice block tray, for all the little screws etc. I numbered each with the step number, as in the instructions, but not all steps have bits to look out for. Where two different size screws are used I had a tray for each size and marked step a and step b. For this I coloured each tray sticker with the colour of the screw as shown in the instructions. All this worked a treat with no confusion or using the wrong part.

    Herb

    Herb Adler -

    The screw size for those with a screw set is P2.

    Gareth Flandro -

  2. S4Op1uHRW2rXDBrC
    S4Op1uHRW2rXDBrC
    PiPwHZGmJLiRKi5N
    lXxFuASq5AJIcCHr

    • Wenn die Glasscheibe des Displays an deinem iPhone zerbrochen ist, überklebe sie mit geeignetem Klebeband, um weitere Brüche und Verletzungen während der Reparatur zu vermeiden.

    • Überdecke die Glasscheibe des Displays komplett mit überlappenden Streifen von Paketband.

    • So werden die Glasscherben zusammengehalten, wenn du das Display als Ganzes hochhebelst.

    • Trage eine Schutzbrille, um deine Augen vor Glassplittern zu schützen.

    • Wenn das Glas so stark zerbrochen ist, dass der Saugheber in den nächsten Schritten nicht gut haftet, dann versuche ein starkes Klebeband ("Panzerband") zu einem Griff zu falten und so auf die Scheibe zu kleben, dass du sie damit hochziehen kannst.

    • Wenn das alles nicht funktioniert, dann klebe den Saugheber mit Sekundenkleber am Display fest.

  3. uSKuDUqkPXShJGIe
    uSKuDUqkPXShJGIe
    VcewaYwFWPodicdm
    UuEMr1v4SuV4fLE3

    • Wir haben die Anti-Clamp entwickelt, um Geräte sicher zu öffnen. Die nächsten drei Schritte zeigen die Benutzung der Anti-Clamp. Wenn du sie nicht verwenden willst, überspringe die nächsten drei Schritte und folge einer anderen Methode.

    • Genaue Anweisungen, wie die Anti-Clamp benutzt wird, findest du hier.

    • Drücke den blauen Griff zurück, damit die Arme der Anti-Clamp frei beweglich werden.

    • Schiebe die Arme entweder über die linke oder die rechte Kante des iPhones.

    • Bringe die Saugheber am unteren Rand des iPhones direkt über dem Home Button an, einen auf der Vorderseite, den anderen auf der Rückseite.

    • Drücke die Saugheber zusammen, so dass sie auf den Oberflächen haften.

    • Wenn die Saugheber nicht gut auf den Oberflächen des iPhones haften, dann kannst du die beiliegenden Stücke aus Klebeband verwenden, um eine griffigere Oberfläche zu schaffen.

  4. TWCRek6KAd4BXPEo
    TWCRek6KAd4BXPEo
    5bA1wXPF4DYK1xqZ
    WBMxwmobsDvHpXqL

    • Drücke den blauen Griff vorwärts, damit die Arme wieder fest sind.

    • Drehe den Griff eine volle Umdrehung im Uhrzeigersinn, oder bis du merkst, dass sich die Saugheber dehnen.

    • Achte darauf, dass sich die Saugheber weiterhin gegenüber stehen. Wenn sie sich nicht mehr gegenüber stehen, dann löse die Saugheber ein wenig ab und schiebe sie in die richtige Position.

  5. 1UMWDAgvEgkQkwPM
    1UMWDAgvEgkQkwPM
    5SG2UIItrZgdZEa4

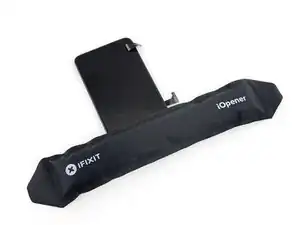

    • Führe einen erwärmten iOpener durch die Arme der Anti-Clamp.

    • Forme den iOpener so, dass er auf der Unterkante des iPhones liegt.

    • Warte eine Minute, damit sich der Kleber lösen und ein Spalt entstehen kann.

    • Wenn die Anti Clamp einen ausreichend großen Spalt erzeugt hat, setze ein Plektrum unter das Display ein.

    • Wenn es nicht gelingt, mit der Anti-Clamp einen ausreichend großen Spalt zu erzeugen, dann erwärme die Stelle nochmals und drehe den Griff eine viertel Umdrehung im Uhrzeigersinn weiter.

    • Drehe den Griff jeweils nicht mehr als eine viertel Umdrehung weiter und warte jedes Mal eine Minute lang. Gib der Anti-Clamp Zeit, ihre Arbeit zu erledigen.

    • Überspringe die nächsten drei Schritte.

  6. HWFBtehBMjCQcFAc

    • Die nächsten drei Schritte zeigen, wie das Display mit einem Saugheber abgelöst werden kann.

    • Es ist leichter das iPhone zu öffnen, wenn du das untere Ende erwärmst, so werden die Verklebungen aufgeweicht.

    • Du kannst das untere Ende des iPhones mit einem Haartrockner oder einem iOpener etwa 90 Sekunden lang erwärmen, dann sollte der Kleber weich genug sein.

    No hair dryer so GENTLY heated over stove burner

    John Toth -

    Hello,

    What temperature is suitable for removing the front display ? I bought i-Fixit ProTech which is not include the heating "roller" . Thanks for help

    Jiří Sítko -

    Ich habe eine heiße Wärmflasche verwendet. Das hat gut funktioniert :-)

    Moritz Hartges -

    I laid my phone face-down on my 3D printer’s heated bed, and set the temperature to 60 C. After a few minutes, it was ready to loosen.

    Nate B -

    If you don’t have an “iOpener” or heat gun, try using an electric heating pad. I have a small $11 pad I got at CVS for my knee. On medium heat it worked fine for removal and with the “pennies” for setting the new seal.

    Pete P -

    I used a heated tea kettle and a tea towel, it worked!

    Adam Yavner -

    I put on the furnace vent for 10 minutes to get it warm to the touch but not hot.

    terrelldoc -

    I attached it to the after burner of my rocket ship and that worked.

    Matt Brown -

    I'm holding mine just above an erupting volcano but I'm still waiting to see if it has worked. How long does it need?

    Paul Aron -

    I used a water-filled ziploc bag, heated it in microwave. fast, cheap, worked.

    John Barker -

    Hairdryer works fine for this step. No issues.

    tripmusic -

  7. VRy3fVrOovwUCabE
    VRy3fVrOovwUCabE
    A5IlSaM3n1xvayKW

    • Setze einen Saugnapf auf die untere Hälfte der Vorderseite , direkt über den Home Button.

    • Passe dabei auf, dass der Saugnapf den Home Button nicht bedeckt, sonst kann der nicht mehr dicht abschließen.

    Even with using high heat from a blow dryer, I had to put the suction cup over the home button or the bottom edge wouldn’t lift at all. That waterproof adhesive is incredibly strong.

    Aaron Soderholm -

    As others have said, this part really stinks, but it’ll work if you keep trying. Agree with multiple rounds of hair dryer on high (did about 60-90s each time), and with having to out the suction cup over the home button. You don’t need a big gap to pry it open - it’ll be slight …

    Johnny Emrica -

    Patience is the key here. Expletives and patience. Like previous comments say, putting the suction cup over the home button (I used packing tape to maintain the seal) will allow you to apply force to the proper location to separate the screen. Good luck!

    J Rawlinson -

    Get a suction cup pliers. It’ll make this part fun

    Bradley Steiner -

    iSclack EVO opened the iPhone easily even without heating with no fear of accidentally over-opening it like with a simple suction cup.

    Matti Haveri -

  8. PnYJMHrBqA2Jh22u
    PnYJMHrBqA2Jh22u
    5BxGfRPfmCqCLMOc
    xYlJ5IgLFMxCDZ2B

    • Ziehe gleichmäßig und fest am Saugnapf. Es sollte sich ein kleiner Spalt zwischen Display und Rahmen bilden.

    • Setze ein Plektrum in den Spalt ein.

    • Die wasserdichte Verklebung am Display ist sehr stark. Um den Spalt zu öffnen, musst du recht viel Kraft aufbringen. Wenn du Schwierigkeiten hast, solltest du nochmals Wärme anwenden und dann die Scheibe vorsichtig hoch und runter ruckeln, um so die Klebeverbindung zu schwächen, bis du genug Platz hast, um dein Werkzeug einzuführen.

    The screen on my phone was so broken, a suction cup did not work, so I softened the adhesive with a blow dryer and used a Jimmy to carefully pry open the phone from the bottom just enough to slip a pick in.

    charguy -

    Just completed a smashed screen replacement, this is probably the most time consuming part. Used packing tape to cover the screen to help create a suction surface (had to replace it a couple times because it pulls away after a purple good pulls ) Used consistent heat for about 5 minutes, then stuck a pick in the tiniest opening… and pry pry pry!

    Brian Gill -

    I failed at this step. No amount of heating, pulling, and rocking opened up enough of a gap to slip in even a knife let alone the blue plastic tool. That's with a phone that has an undamaged screen - just trying to replace the battery. Apple won this round :(

    Michael Sherman -

    Be really careful here. I placed a sucker to the front and rear to help lever off the screen. However, the whole thing came away much easier than I anticipated and I ripped the front part completely away from the rear, tearing all three connector cables. New iPhone required.

    Chris Wood -

    Note that the opening pick they show here does not appear to come with the kit, which is a bummer! The plunger, the mini blue crowbar thing, these are too thick. I ended up using a really thin guitar pick.

    Johnny Emrica -

    Following careful methods can mostly preserve the seal and reusable. Won’t be as water tight but probably still pretty good.

    Bottom edge is pull up with suction + separating tool. Use small precision scissor to cut any tape that gets overly stretched upon initial opening.

    - For the 2 long edges, use an exacto knife to separate the seal from the screen. This keeps the tape on the chassis. Go slow along the long sides. Becareful to avoid scratching the paint on underside of the screen’s edge.

    - Top corners have a thick sealed tape. Best to just use separating tool to twist it open.

    In summary, top and bottom edge use separating tool. Side long edges can use exacto knife to gradually gently separate the seal from underside of the screen’s edge.

    Howard -

    4 picks and an exacto knife, plus 45 minutes later, I finally got it to open! Thanks tor the tip!

    Cat -

    Intact screen, check. Tool kit, check. Hair dryer hot enough to make the phone too hot to touch, check. Following all instructions, check. Screen still in place and refusing to come off, check.

    I heated, reheated, pulled and pulled. I simply could not get it off. Worked at it for an hour and a half, and I’m not a small guy. Yes it is hard to hold, but could get a grip. Just could not get it to budge. Off to the iPhone repair shop tomorrow. Anybody want to buy a repair kit and replacement battery?

    Jim Meyers -

    After struggling for 30m, I looked up some alternate methods and found this helpful:

    https://www.youtube.com/watch?v=25zAK5mG...

    - I used a utility knife and pried up right under the home button

    - the angle matters! I was trying to go too far down before going in. The top surface of the phone is rather thin, so you go in after barely getting under the chassis lip

    - tilt utility knife left to right once you’ve got it under to work it in

    - leave the utility knife in, and now add that pick

    Jared Wilk -

    Pro-tip: don't be an idiot like me. Instead, remove the screen protector you have on the phone before applying the suction cups. Derp.

    hunter.geofizz -

    I struggled with a hair dryer at first and a singular suction cup. However, I tried putting packing tape on the spot where I put the suction job (even though my screen isn't cracked) and I was able to do it first try with ease. Definitely recommend packing tape.

    Alessio Toniolo -

    Suction cup pliers. Dead easy

    Bradley Steiner -

  9. 2QPL6xQ1bKKTHEE2
    2QPL6xQ1bKKTHEE2
    Scr2EQgs2BWhSj3N
    KyO5DVLoiSXnDh2Z

    • Schiebe das Plektrum entlang der linken Kante von der unteren Ecke an nach oben in Richtung der Tasten für die Lautstärkeregelung und des Stummschalters. Trenne so die Klebeverbindung des Displays auf.

    • Halte vor der oberen linken Ecke an.

    • Versuche nicht, die Oberkante des Displays vom Rückgehäuse wegzuhebeln, denn hier halten Plastikclips die Teile zusammen. Die Clips könnten abbrechen.

    My Plektrum worked ok, but the edges broke off a bit towards the end

    griffin.weber -

  10. g1bJoLynAKeivqUm

    • An der rechten Seitenkante verlaufen empfindliche Kabel. Setze das Plektrum an diesen Stellen nicht ein, die Kabel könnten beschädigt werden.

    I was trying to replace my battery, and accidentally cut one of the cords on my screen. I marked my pick, so i don't know how it happened.

    Gib Jeffries -

  11. bYHHQWBLX2SbZ4ZM
    bYHHQWBLX2SbZ4ZM
    oWPIhKQUMFLQKwJF
    VbhlSMqUKVaR3i4t

    • Setze das Plektrum an der rechten unteren Ecke ein. Schiebe es um die Ecke herum, dann entlang der rechten Kante nach oben. Trenne dadurch die Verklebung.

    • Setze das Plektrum nicht tiefer als 3 mm ein, du könntest sonst die Displaykabel beschädigen.

    No pick in the kit you sent me.

    Ted Cooper -

  12. JsELGeLj2sULj4Rl
    JsELGeLj2sULj4Rl
    1Q5TB6TXChTQrCSO

    • Hebe vorsichtig den Saugnapf an und mit ihm den unteren Teil des Displays.

    • Hebe das Display maximal 15° an. Du könntest sonst die Flachbandkabel des Displays überdehnen und beschädigen.

    • Ziehe an der kleinen Lasche am Saugnapf, um ihn vom Front Panel zu lösen.

  13. 1wx6fuMwGlVmTVwg
    1wx6fuMwGlVmTVwg
    L5DvjVj5xMJAlXg4
    y6nMrARZIGjH4KZO

    • Schiebe das Plektrum unter das Display um die obere linke Ecke und die Oberkante entlang, um die letzte Klebeverbindung zu trennen.

    I did end up using just a smidge of IFIXIT adhesive remover along the edge before opening and that seemed to really help

    Karen Flowers -

    I have been using the pointed tweezers to pull the adhesive strands apart and out as the display comes off.

    Adam Yavner -

  14. pmOBsioPu6PHdocL
    pmOBsioPu6PHdocL
    wCWsnncFGO1Jy1KT

    • Schiebe die Displayeinheit leicht nach unten, weg von der Oberkante, um die Clips zu lösen, mit denen sie am Rückgehäuse gehalten wird.

  15. XaJPKiESSbHGIDqx
    XaJPKiESSbHGIDqx
    TKsLuMfvlLBnsdMa
    uyGD4MIvBrhLyuiO

    • Öffne das iPhone, indem du das Display von der linken Seite her umklappst, so wie wenn du ein Buch öffnest.

    • Versuche noch nicht, das Display ganz zu trennen. Verschiedene empfindliche Flachbandkabel verbinden es noch mit dem Logic Board.

    • Lehne das Display an einen geeigneten Gegenstand, um es gut zu stützen, während du weiter am iPhone arbeitest.

    Nach RECHTS klappen - nicht nach links!

    Manfred Wachtel -

    Als ich das Flachbandkabel auf der rechten Seite sah, hab ich mich auch gefragt, ob die das mit nach Links klappen ernst meinen, und das „Buch“ lieber auf japanische Art nach rechts aufgeklappt. Das sollte dringend in der Anleitung korrigiert werden!

    Sebastian Plickert -

    “Up from the left” means lift up the left side.

    Which is the same as folding to the right.

    “Like the back cover of a book” explains it even more clearly.

    Maybe it gets lost in translation?

    Nick Shtangey -

    Fold to THE RIGHT - not to the left!

    Jim Glenys -

    When I saw the ribbon cable on the right side, I also wondered if they were serious about folding it to the left, and the "book" would rather be opened to the right in the Japanese way.This should be corrected urgently in the manual!

    Jim Glenys -

    Hi Jim, the display opens from the left side, toward the right side. It should look like the back cover of a book. Hope this helps. Good luck with the repair!

    Adam O'Camb -

  16. UHPAQ4xaQQRZEEc2

    • Entferne die folgenden Dreipunkt Y000-Schrauben, die die Blende des unteren Displaykabels am Logic Board fixieren:

    • Drei 1,2mm Schrauben

    • Eine 2,6mm Schraube

    Is it really safe to lay the device fully open like a book? The cable leading to the LCD gets stretched across the sharp edge of the aluminum edge of the back cover.

    u204863 -

    Generally I'd say no, it's not safe. In reality I've seen a bit of variance in the cable length, and sometimes it'll be fine—but mostly I'd be prepared to prop the display up or hold it in place at a slight angle so it doesn't put too much stress on the cables. On prior iPhones it was easy to rubberband the display to a box or a can of soda, and something like that would probably work well here too. Use your own judgment.

    Jeff Suovanen -

    You could stick the suction cup back on, near the right side of the phone, with the blue hook oriented in such a way that it becomes a stand for the screen. That way it won’t open much more than 90 degrees, and leaves both your hands free.

    Mark -

    The tri wing screws are so hard to remove. What's the trick?

    shannon caldwell -

    At first I think I was being too careful and was getting no where. I got better results by pressing down on the screwdriver with more pressure while turning and those little screws came right out.

    LadyTech -

    I cannot remove one of the corner screws in this step and i have used the tweezers and the y000 tri tip and i am afraid that it is stripping it. is there a work around for this step?

    Katherine Monday -

    @katmonday1 No workaround unfortunately. Make sure the driver tip is in good condition and fits the screw correctly. Seat it in the screw, hold the driver perfectly vertical, press down hard (and maintain it), and turn. It’ll come out. If it’s really stripped you’ll have to get more aggressive—try one or more of the techniques in this guide or get some help. Good luck!

    Jeff Suovanen -

    my screwdriver will only remove the 2.6mm screw and not the others, what shall i do?

    AubreyG1 -

    A tip to remember which screw is which as the differences are pretty tiny: I used different colored sharpie fine-points and made a mark on the top of the screws before removing. I thought about having strips of tape that I stuck similar sizes to, but the coloring seemed to work more easily. I only did this for step 11 and it saved me down the road when trying to differentiate the 1.2 and the 1.3mm screws!

    Trey Smith -

    STOP! Before you remove Any screws, be sure to create several bins to hold the various sizes in… or mark them like Trey suggested. I failed to pay attention because I thought they were all the same… they are not. It is very hard to figure out the sizes if you remove them all and store them in a single location.

    John Grant -

    i had a piece of paper with the steps numbered that involved screws. I had double sided tape on the paper and the number of screws and thier position marked. This was so helpful in removing and then finding and installing the tiniest screws on earth. And i have TINY hands. I can’t imagine someone with large paws being able to accomplish any of this.

    Tina Matthews -

    there is one screw thats 1.2 mm but its bigger than the others and will fit in no hole of the entire phone. i got it out bot now i have no idea where it has to go i tried every hole. can somebody help me?

    Lars Göbel -

    what do i do if one of the screws dont want to come off

    Neylley Reynoso -

  17. k34xU4RKWbs1uk5K
    k34xU4RKWbs1uk5K
    GKWmAgKZl1p5xwIU

    • Entferne die Blende des unteren Displaykabels.

    I am confused, please help. LOL the bracket, the very first one being removed. I see it has three screws the same size and one a different size? I've been trying to fix my daughter's phone and ordered a 0.6 mm Tri Wing screwdriver for iPhone 7 plus /Apple watch. It seems to fit the screws and it seems to be turning them although I can't see that well but they're not coming out. However when I used it on a smaller bracket with two screws they came right out so I'm thinking I don't have the right screwdriver I am at my Wit's End!! I have been working on this phone or attempting to for a while now. I cannot find a list anywhere of the exact size screwdrivers needed to Take apart an iPhone 7 plus. Any help would be greatly appreciated.

    chris west -

    If your tri-wing screwdriver worked for other tri-point screws in the phone, then it should work for the screws you are struggling with! If it feels like the screws are spinning but not coming out, try to use tweezers to pull them out. I often struggle with tri-point screws, and need to apply some downward pressure to remove them. This can be risky though, as you do not want to strip the screw or damage components underneath the bracket. If you continue to struggle, you can give this driver and this bit a try.

    Scott Havard -

    Also be aware that the battery connector might stick to the bottom of the steel bracket. This part had me a bit puzzled at first. lol

    Just gently pry the connector off the steel bracket to release it and be sure the connector isn’t allowed to accidentally reconnect to the board.

    jeffrey griffith -

    I had to use a fingernail to dislodge the bracket. As Jeffrey said, it was apparently stuck to the connector.

    lkollar -

  18. VS1FiZyZHebFIuQo
    VS1FiZyZHebFIuQo
    ZZUGd2VCcGplGEZm
    uSeYoeEvmaI6TPuB

    • Mit der Spitze eines Spudgers kannst du den Batterieanschluss aus seinem Stecker auf dem Logic Board heben.

    • Biege das Anschlusskabel leicht nach unten, um zu verhindern, dass es mit der Steckdose in Berührung kommt und das Telefon mit Strom versorgt.

    You could cover the battery socket with a small piece of tape to make sure that it doesn’t accidentally re-connect. It’s not likely to, but I liked the peace of mind.

    Mark -

    on reassembly, make sure that the connector cable is back in place, along side the battery, and not up, or on top in any way.

    Sarr Sheffer -

    I slipped a small piece of paper under the flap.

    MajorCouillon -

    After this step it is worth jumping to step 36 and disconnecting the lighting connector assembly (indicated with the orange rectangle) and connecting the new cable to test it out. After attaching the new lightning connector assembly, reattach the battery, and try plugging it in to see if the new assembly works correctly. If it does, then power down the phone, disconnect the battery, and disconnect the new lightning connector assembly. Then continue. If it doesn’t work, this check will save you a couple of hours of work.

    Evan O -

  19. EjPXnLkfPYtKriYF
    EjPXnLkfPYtKriYF
    ohPCtWpSggN3HkmE
    Fpc2oOAExSPUJGn2

    • Bevor du in diesem Schritt Kabel ablöst oder anschließt, musst du den Akku abtrennen.

    • Nutze das flache Ende eines Sprudgers oder einen Fingernagel, um die beiden unteren Displaystecker aus ihren Buchsen auf dem Logic Board zu hebeln.

    • Beim Wiedereinbau von Steckverbindungen, drücke die Kontakte erst an einem Ende nieder bis sie einrasten, anschließend das zweite Ende. Drücke nicht in die Mitte des Steckers. Wenn der Stecker auch nur minimal verschoben ist und du darauf drückst, verbiegt sich der Stecker und es kann zu einem unreparierbaren Schaden kommen.

    • Wenn du nach dem Zusammenbau kein Bild hast, das Display nur weiße Zeilen zeigt oder die Touchfunktion teilweise oder ganz ausgefallen ist, dann löse noch einmal diese beiden Kabel und verbinde sie neu. Achte darauf, dass sie gut sitzen.

    The note about the danger of pressing on the connector incorrectly is very legitimate. Though I find it more practical to use a wide (1.5 cm) case opener tool to press it down all at once. Minimizes risk of bending the connector.

    Talon -

    What can happen if the battery is not disconnected before the two lower display connectors?

    Alextay -

    Hello, by my expierence and what i have learned iphone repair videos you can ‘blow up’ capacitors which one in logic board, screen is sensetive with voltages and etc….

    Darius Varanavičius -

    what are my options if the display connector broke? can it be replaced or do I need to get a whole new screen?

    matomach -

    When I removed the lower display cable bracket in step 12, the top connector stuck to the bracket and became disconnected.

    Grant Crawford -

    My replacement screen wouldn't sit in the display connector properly, (wouldn't clip in both sides at same time) so I made sure it sat on one and it was lined up and got a thin piece of dense sponge and placed that over the connector, then proceeded to install the connector shield and screen works perfectly fine without a hitch. Very good tutorial just earnt me £25 lol

    Joshua Driscoll -

    have the same issue, sometimes it doesn’t sit on the left side, other time not on the other, the difference is iphone not starting at all or looping with apple logo reboot…

    ibisiki -

    Bent the pins on the connector out of place, worked them very carefully back with fine nose tweezers. This was by far the crux of the repair for me.

    nicO -

  20. eOV4A2QhwOEwbiHK
    eOV4A2QhwOEwbiHK
    PHEMGNluvvEJ1qga
    AiXmxFQOUDwwQlS2

    • Entferne die drei Dreipunkt Y000 Schrauben, mit denen die Abdeckung über der Buchse für den Sensor des Front Panels befestigt ist.

    • Eine 1,3mm Schraube

    • Zwei 1,0mm Schraube

    • Entferne die Abdeckung.

    Posted a comment above on the first step. The screwdriver that I ordered Works taking out these two screens shown in the picture. However it does not work on the first bracket that needs to be removed. It seems that all screw sizes are somewhat different but I'm not finding a list showing different screwdriver sizes needed. Does this make sense? Could anybody please give me some advice on this thank you much.

    chris west -

    I know your comment was posted a long time ago but just in case someone else has the same problem, the only difference in the screws are the lengths. The ends are the same.

    mcr4u2 -

    What happens if you break “tear in half” the black tape stuff?

    assweeetasyou -

    Unfortunately if you tear the black cable you will need to replace it !!!

    Wayne Lyell -

    Chris West the screwdriver that probably came with the kit was pentalobe to get the first two screws out to open the case. you need a .6mm Y tip driver for internal. its deceptively Phillips looking but is not it only has three blades in a Y, not 4 in a +

    Jeremiah Kjensmo -

    I called the y tip a triangle tip until I read these comments. Thanks for the correction

    Kayla Tobin -

    Hello is it if I put wrong screw can damage the board?

    alicenine84 -

    Care should be taken while removing the last 1.0mm screw, on the far right in the picture. This screw is screwed into another screw (or standoff) beneath the bracket. This standoff may come unscrewed and upon removing the bracket you may find the screw and standoff are still attached to the bracket. Do not lose this part if you decide to separate them , the standoff is not a normal phillips, and may require a special driver to reinstall. I used the phillips to start it back in, and relied on the screw to tighten it upon reassembly.

    Benji -

    I know this is late bit a trick I use to put the standoffs in (had to do 2 cause someone lost the screws I was replacing) is to take the screw that goes in it srew them together loosely to give it a fake phillips head then gently screw both into the spot the standoff goes in. you can then take the phillips out (may need to put a spudger between the screw and standoff to keep the standoff down then use a tiny flathead to gently tighten the standoff down. its a few steps but makes life easier if you need to replace it quickly.

    Stephen Patterson -

    I was able to remove the first 1.0 mm three tri-point Y000 screw from the bracket but I cannot for the life of me get the other 1.0 mm screw undone or the one 1.3 mm screw undone. Any tips?

    I tried pressing down a bit harder and I even put the first screw back in to see if it helped me loosen the other two but it did not work.

    My screwdriver was doing the job up until this point, and I’m worried I’ll strip the screw if I keep trying.

    Would appreciate any advice!

    jrosegoep -

    Dear IFixit: First, I want You to know I love your repair guides. I consider You to be the absolute best repair manuals available. But, hopefully as your friend I am going to point out once the bracked is removed a 2.0 mm Standoff screw should appear. It’s 1 of 2 screws holding the Antena Flex Cable in place. Rob

    Robert Schmidt -

  21. HP3GYMeDTQfroDSM
    HP3GYMeDTQfroDSM
    rYVXLQtY5ZhLE5pe

    • Ziehe den Stecker der Front Panel Sensoreinheit aus der entsprechenden Buchse auf dem Logic Board.

    • Diese Steckverbindung sollte beim Wiederanschluss auch erst an einer Seite und dann an der anderen Seite zusammengedrückt werden, um zu verhindern, dass etwas verbogen wird.

    Make sure that the orientation of the cable when you attach is correct! See the picture for the correct orientation. If it gets installed 180 degrees out(i.e., the ribbon goes up instead of down, then the earphone, front camera, and Home button will be inoperative. Ask me how I know!?! Worked great when installed correctly!

    Kevin Reilly -

    Thanks Kevin. I would be stuck if I hadn't read your comment!?! Great input.

    Lukas Watts -

    That's save my life!thanks god!

    neg -

    I also made this mistake! Thank goodness it didn’t break anything.

    That Guy -

  22. 6sXLpmxMPOVXtwBd

    When removing the old adhesive from the edges, duct tape can be useful. Simply use small strips of duct tape and your spudger to press the tape’s adhesive side carefully into the edges of the phone’s display and slowly peel the duct tape away from the display. The duct tape should pick up the remaining adhesive and carry it away from the edges. use the tip of the spudger to gently scrape away any remaining dirt or film from the crease around the edge and repeat the action with a new strip of tape to pick up any dirt, adhesive or grime from the surface. This should save considerable time.

    Benji -

    Thank you for including a link to the iPhone Display Adhesive Replacement guide, this was very helpful!

    Robert O'Brien -

    is it really necessary to remove the display? the screen connectors are delicate and I fear re-assembly errors. I changed the battery and did not remove any screen connectors. no problems.

    jacobra -

    Due to the fact that THIS is the repair guide for replacing the DISPLAY it IS necessary to remove the display connectors. There is another guide for changing the battery -- you might want to follow that one.

    Hannes -

    I did not remove the display and ended up ripping one of the lower display cable ribbons when I turned the phone to remove one of the connectors. Be careful. I had to get a new display and move the Touch ID button.

    Shawn Hime -

    I think that moving the replacement of the seal lower in the chain of events would be more beneficial. I'm replacing the battery, and stretching the adhesive tabs that held the battery in at a low angle kept sticking themselves to the newly-installed adhesive seal.

    In the end, I wound up having to just remove the section of the seal along the bottom of the case :-/

    If I'd been looking at the bigger picture, I'd have wanted to put the seal on right before reattaching the screen cables.

    Rob Russell -

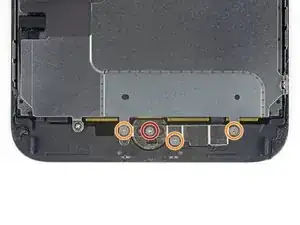

  23. ojlNJDTaqaI2sKKD

    • Entferne die vier Y000 Schrauben, mit der die Abdeckung des Home / Touch ID-Sensors befestigt ist:

    • Eine 1,1 mm Schraube

    • Drei 1,3 mm Schraube

    • Überdrehe beim Zusammenbau diese Schrauben nicht, sonst funktioniert dein Home Button nicht.

    Why is the screw over top of the home button so difficult to get out… has anyone else experienced this..? This is twice now I've struggled to get that screw

    Brandon -

    The screw to the left holding the heatshield is never mentioned in this guide

    Beerbo -

    No reason to touch that screw unless you’re removing the shield—in which case, this step instructs you to remove it.

    Jeff Suovanen -

    The link that was mentioned takes you to the heat shield for iphone 7 plus. There’s a slight difference in the two models.

    Jason Glenn -

    To clarify: the regular/smaller iPhone 7 has no screw on the far left there. The 7 Plus does, but there’s no need to touch it unless you’re removing the large metal shield covering the back of the display. The procedure in the guide is correct.

    Jeff Suovanen -

    So I stripped the screw furthest to the left, how can i possibly remove it now? Can I just buy a new LCD shield and home bracket button and screw and will that work just fine on the new screen replacement? this stripped screw of mine is not coming out

    Bryan Ferrer -

    That should work, as long as you can still get the home button/sensor out without damage. For removing a stripped screw this size, I’d probably try supergluing it to the driver—or else just drill the top of the screw off and then remove the bracket, leaving the screw shaft embedded in the old display. Good luck!

    Jeff Suovanen -

    I used the same driver for all of these screws. Had to apply a lot of pressure before trying to unscrew it and it was fine.

    jessica harlow -

    This is wrong, the size you need is Y00 for the 1.1mm screws and Y000 for the 1.3mm one.

    Robert Clark -

    The heads on those screws are identical. I’ve never had any trouble using a Y000 for all of them. Use whatever works for you I guess.

    Jeff Suovanen -

    I’ve managed to strip the screw on the right hand side - not the far right, just right of the home button. Any ideas on how to get it out without glue (I don’t have any)

    Christie Ellen -

    My screwdriver is too big to get out the screws

    Coolinee Kerman -

    My eyesight isn’t what it used to be. That said, the replacement screen that arrived already had screws in the two outside positions. It took me a minute to figure this out when I was trying to install the home button. I couldn’t figure out why the screws weren’t going in. I thought the holes were filled or something… Nope. screws. Took them out and used them.. all good.

    Critter -

    My 7 had quite a bit of loctite holding these bad boys on. I stripped the one to the right of the home button and after using many “sentence enhancers” I was able to remove it using good tweezers and quite a bit of hand strength. I think that heating up the screws here is not an option because the cables lie underneath the plate and would probably get damaged from the amount of heat needed to loosen the loctite. Be patient here, and maybe have spare Y000 drivers because you may damage your driver getting these screws out.

    P Park -

    If your having trouble. I recommend you guys to buy the Y00o driver at amazon. It look golden. It works very will .

    Jonathan curz -

    Read instead of: “Remove the four Y000 screws”. “Remove the four Philips 00 screws”. Thats the case what occurs to me.

    Henk -

    Hi all, I’m really hoping someone will be able to give me a hand here, so the 1.1mm screw on top of the home button is stripped, and absolutely refuses to get out. I have tried the superglue technique mentioned and am worried it may have even glued the screw to the bracket. The only solution I can think of is to bend the home button bracket on either side of the middle screw, and use the bracket itself to remove the screw from the home button. I have ordered a new home button bracket either way, does anybody have any other ideas? Should I even attempt what I am proposing?

    Thanks in Advance.

    llamalulu42 -

    This worked for me take a Stanley blade and saw a grove across the screw with the edge ofcourse then heat the home button with hair dryer for a couple of minutes take the blade and press it into the groove you scored and turn it

    Paul -

    Does the ground strap go over or under bracket?

    Marcos Polos -

    over the bracket

    David Proudman -

    my home button does not work anymore! do you know why?

    josé -

    I magically used an X-acto knife tip to lift the edges of the home button screw to loosen it, and then turned it slightly with the X-acto blade tip in the screw slot to get it started, then the 000 screwdriver could finish it.

    Jim Pflasterer -

    I can’t stress how important it is to not overtighten the one on the button. I undertightened the center one at first in fear, and then tightened it more when I realized the button was loose. It ended up ruining the home button :(

    Brendon Parker -

    I was completely unable to get the screw directly over the homebutton off. I definitely stripped it some. Here’s some tips!

    1. If you are trying to unscrew and it skips instead of locking in—STOP. Apply more pressure, and then try again. Keep doing this until it comes out. If you continue turning without doing anything, you’ll strip the head of the screw and end up in a way worse situation.

    2. If your screw is stripped, first try putting a rubber band between the screwdriver and the screw to fill the gap. Duct tape has worked for many people as well.

    3. If you can’t get the screw directly above the home button off of the home button, I found this video that shows how to remove the home button without unscrewing the screw!! Bend the protective plate up 90° on both sides of the home button so the bent plate now fits through the home button hole. Then you can continue to

    the next steps and remove the home button with the plate still attached to it.

    https://www.youtube.com/watch?v=DTCQA-jn...

    silas -

    Don’t know if I did something wrong, but the home button no longer works. I’ll see if I can get someone to repair it.

    David Proudman -

    Found a software workaround, go to General > Accessibility > Assistive Touch. Now you don’t need the home button to work to use the phone

    David Proudman -

    I enabled assistive touch before making a go on this part. Screws are very small, easy to strip, and difficult to find if they go flying when you;re just trying to seat them properly.

    jack jones -

    VERY SMART!! I would not have thought of doing that. Depending on what my local repair guy charges I may be doing this myself, but in all honestly if the home button does not work on the new screen I'm getting another phone

    FallenAnjel -

    I’ve never been so stressed at trying to assemble something, O_O I should really get some glasses. I just reassembled all the screws, tried to not screw too tight, but how does one know? Maybe they could include “only twist 3 times, or 2…and maybe provide an ocular. Those screws are very very very tiny, and yes - be careful, because if you attach the right screw first, the left one can be catapulted if not secured and just “set” waiting to screw in. Thankful for the magnetism, but also had to find myself holding the screw in place while securing or else it would just attach to the screwdriver and come out. I'm TOTALLY looking forward to turning this ON after all assembled based on all the disheartened comments…..oy. Here. We. Go.

    Nicole Crome -

    There’s a small square rubber piece that has a screw hole in it. does anyone know if it goes over the home button? I missed it when I took it apart, but then , there it is on my table.

    MajorCouillon -

    It slips over one of the posts that the pentalobe screws in step 1 go through. Like a mitten over a hand. It’s incredibly hard to see where the slit is in that tiny rubber piece though.

    Jared Cook -

    What do you do if you overtighten the screws? I assume that is why my home button won't click

    Andrew Targett -

    How can you tell if you’ve over-tightened the screws or if the home button isn’t working for some other reason (other physical damage, shorted out, etc.)?

    Jared Cook -

    Die Schraube auf dem Home-Button ist wohl von Apple gewollt schwer zu entfernen. Man sollte sie daher zuerst herausdrehen; denn, ist die Unterlage unterm iPhone nicht hart genug und man drückt jetzt mit Kraft über den Schraubendreher auf die Schraube, wird der Home-Button hinausgedrückt, dabei verbiegt sich die Halterung und besonders schlimm, das eine untere Flachbandkabel reißt ab und der Home-Button ist unbrauchbar.

    Hartmut Kruse -

    So from those that do many repairs what do you think is the percentage of repairs in which the home button doesn't work after moving it to a new screen? 10%? 30%? 70%?

    FallenAnjel -

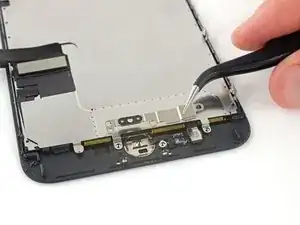

  24. EuPNDThIEkYVXCdo

    • Entferne die Abdeckung über dem Home / Touch-ID Sensor.

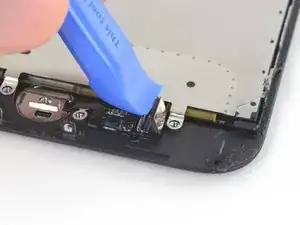

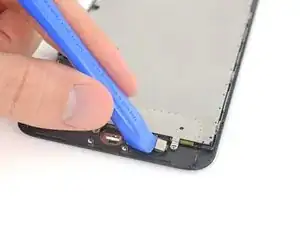

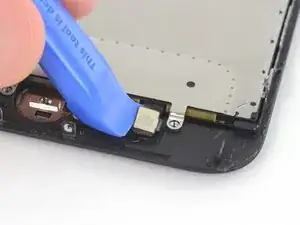

  25. Zs4ZTIWOOiVLiCDp
    Zs4ZTIWOOiVLiCDp
    sv1csHB2hHsCYRfG
    eSeTEobcn2gBNVrS

    Well, I just damaged the home button connector in step 31. It is completely off the cable. What now? Can I buy this home button?

    LadyTech -

    I think you can not do it because your phone is not identify for new cable.

    Ali Alsaed -

    Best thing to do here is to NOT pry up on the connector, but to insert the pry tool on the left side until the connector is dislodged.

    Oscar Moreno -

    Good tip. Worked perfectly. Thx.

    Klaus M -

    That worked perfectly, thank you!

    Emily Kretschmer -

    use one pry tool to hold down, another to pull up.

    Christa -

    I did it. :-( i broke it

    Peter Keller -

    Anyone having difficulty reconnecting the two ? I’ve been trying for ages with no luck.

    Patrick McKenna -

    Same problem here - can reconnect them once the new LCD is being installed. Not sure what the trick is.

    edcraigslistaccount -

    Yes I had to fiddle with it for about 20mins to get it to finally click in place, just don’t apply too much pressure it doesn’t take much, if the alignment of the connector is right you should feel it snap into place. connect the cables together before you screw it in place, also raise the assembly up off the small locator pin until after you get the connectors together. Hope this helps

    Callum Cross -

    my Homebutton don´t work after I reconnect all, I checked all flex cables but it still dont work. what can I do?

    Dr. Dieter -

    so, i’m working on an iPhone 7. I was very careful not to break anything, I even bought an iOpener heat pack and applied it, and everything went off without a hitch, but when I tested the button, It does not work, would it help to reconnect it or something?

    Thanks a lot!

    Peter Keller -

    iPhone 7 home “buttons” can be really fussy. You’ll find some good troubleshooting tips here and here. Hope this helps!

    Jeff Suovanen -

    Broke my cable. The picture is not clear but you have to separate the thin silver end of cable from what looks like a black piece of rubber. I pulled up on it from under the black rubber like the picture shows and broke mine.

    bart.hutchings -

    This helped me SO much. Watch it before removing home button. Around 4:56ish

    https://youtu.be/An9kUJshRjA

    Gina Torres -

    Thank you so much!

    Jakob Kloppenborg -

    That’s a very good view. Thank you!

    johanbogg -

    Yup, this video helped me know what people were talking about. It worked and I didn’t rip or break anything…so far XD

    Christopher Villavicencio -

    Well, I just damaged the home button connector in step 21. It is completely off the cable. What now? Can I buy this connector ?

    dima shynin -

    I’m having a really hard time reconnecting the two together. Any advice?

    Ben Carter -

    I used the tweezers in step 21 to separate this connector. I squeezed the tweezers shut then put the flat edge of the points between the connector and slowly released the tweezers. The connector separated really easy.

    sschaffer -

    This tip worked a treat. Thanks!

    Admin4CBowra -

    any tips on reconnecting the connector. I assume it needs to be snuggly fit back in. I can’t seem to connect the two agin. Is it supposed to ‘snap’ together or should I use an adhesive?

    rwalz -

    Figured it out. I just needed to make sure I aligned them better when feeding the home button backthrough

    rwalz -

    勢い余ってケーブルを

    ブッちぎってしまいました(>_<)

    MARU -

    Hi, After fixing Iphone 7 Plus screen, my touch sensor is not working, What is the alternative .. Please help me . Thanks

    kalyan c -

    I found it quite difficult to reconnect the home button cable connector. After putting everything back together, my iPhone said there was an error with the TouchID. I disassembled the phone again, pried off the home button connector and found that I had not lined it up properly with the mated part. I had to push the connector upwards (toward the top of the phone) in order for it to seat properly. It almost felt unnatural to push the connector so far up to make it seat properly. I tested the phone again before reassembling and everything worked fine. If you break the cable on this home button piece, you can only buy a generic home button (about $8 here on Amazon) that will allow you to use the button for navigation but it will not work for TouchID (you will have to use your phone permanently unlocked or use a numeric code to unlock). The original home button is specifically mapped to your phone and cannot be replaced.

    awillimd -

    Yeah, I couldn't snap it back together either and after giving up a few times, probably the third time I came back to it, about the 10th time trying to line it up, the cable just totally snapped off....

    nlr_fairygirl -

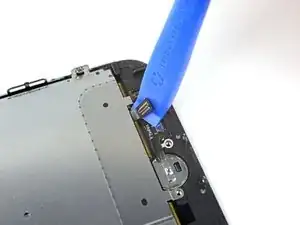

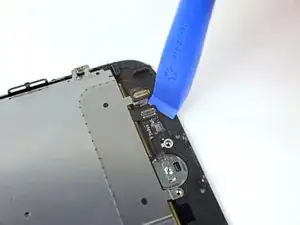

  26. dEqJbiZKyL5lkUMf
    dEqJbiZKyL5lkUMf
    RsLY5rWUDpcGP3sH

    • Heble behutsam den darunterliegenden Stecker hoch und biege ihn aus dem Weg für das Home Button/TouchID Kabel.

    • Das iPhone kann bei diesem Schritt leicht beschädigt werden. Arbeite langsam und passe gut auf, wo du dein Hebelwerkzeug ansetzt. Wenn du die TouchID Hardware beschädigst, kann sie nur von Apple repariert werden.

    • Wenn sich der Stecker nicht leicht hochhebeln lässt, dann erwärme den Kleber des Steckers mit einem Haartrockner oder einem iOpener, versuche es dann nochmals.

    • Versuche nicht, den Stecker ganz abzulösen - klappe ihn einfach ein wenig hoch, so dass das darunterliegende Home Button/TouchID Sensorkabel entfernt werden kann.

    Make sure that you fold this cable out when fitting your replacement before you fasten the shield back down. I didn’t but managed to loosen 2 screws on the shield to get the cable out.

    chris_sawyer -

    If you have isopropyl alcohol on hand. You can use it to help weaken the adhesive temporarily when lifting up the adhered home button.

    Ben -

    Just one tiny drop of isopropyl alcohol or it will reach the lcd screen.

    Stefano Restuccia -

    Heat is absolutely vital during this step. Care should be taken and you should work very slowly. A new playing card will be useful in separating the ribbon from the device, using heat periodically to soften the adhesive as you go along. The ribbon cable changes size between the connector and the button, creating a weak area that can begin to rip if stressed. Use a card flat against the frame to slowly separate the cable from the frame.

    Benji -

    The isopropyl alcohol did the trick for me; all it takes is for you to dip the prying tool in a bit of the alcohol and the rest is magic. I did not have to apply heat and I was able to remove the home button from the original screen to transfer it to the new screen without any issue! Be careful, go slow, don't force things, and when it doubt view and review the video and instructions!

    Lemuel Gonzalez -

    Alcohol or Ifixit adhesive remover is the trick. I used the tweezers to dip in the remover and just a smidgen is all you need, start on the connecter side and work towards the button. - On reassembly, I kept the screen protector on and just peeled it up enough to slide the button in, then used it to hold the button in place while I finished up.

    William Riggles -

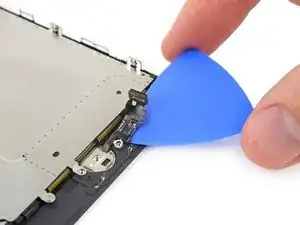

  27. PxAXBCMRKBJOIMIs

    • Wenn du den Bereich um den Home Button/TouchID Sensor erwärmst, dann wird der Kleber weich, mit dem seine empfindlichen Kabel befestigt sind, so dass er leichter entfernt werden kann.

    • Drehe die Displayeinheit herum. Nimm einen Haartrockner oder bereite einen iOpener vor und erwärme etwa 90 Sekunden lang die Unterkante des Displays, damit der Kleber darunter weich wird.

    If you don’t have that heating tool, a hair straightener n a T-shirt worked just fine for me

    www.tertlegerl -

    A hair dryer works well too. 2mins is all you need

    Mr Tegs -

    I did with a heat gun instead. I found the i opener not helpful.

    David Gordon -

    I need just 1 min with my hair drier, then the screen starts to pop and crackle

    Andrew Sims -

  28. pK4XTE2iKPQrM3vY
    pK4XTE2iKPQrM3vY
    vkwK6UXHRn3BAVgJ
    GJ26hPLXWKT6M1dR

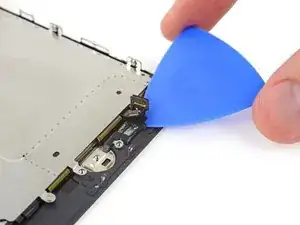

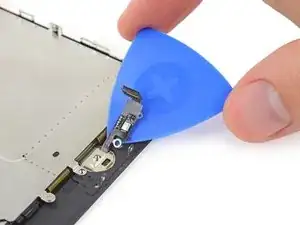

    • Schneide vorsichtig mit einem Plektrum durch den Kleber, der das Home / Touch ID Sensorkabel an der Rückseite des Displays hält.

    It cannot be stressed enough that this is the one part of this repair that you can’t screw up. Anything else you’ll deal with during this repair can be easily replaced (The screen, and the sensor/microphone/camera assembly). Tearing this cable means an expensive trip to the apple store. or a very unhappy customer if you’re doing this for someone. Heat is your friend. I don’t even use a spudger or a guitar pick for this one, I use a new playing card to pull this up. Even with the card, you have to be careful. The edge of the playing card can nick the cable if you’re not careful to get it under the ribbon cable. If the adhesive isn’t soft enough for the card to get it up, apply more heat. Again, you can’t screw this step up. It’s all or nothing.

    Spartan99 -

    Thanks for the tip! worked great!

    Isaac Ham -

    Do you know what I need to do if I damage the cable?

    Hey hermano -

    Yes playing card is what I used too, worked very well. Just heat it up(I used a 3D printer bed for 30 seconds at 80°). Just go slow from right to left.

    cheap parts -

    Well, no visible damage but the home button won’t work. I contacted a local Apple Authorized Service Center to check options. Since I had personally replaced the screen assembly, they wouldn’t even look at it per Apple policy. They said they would jeopardize their Apple Authorization if they even looked at it. Seems like more of the “Right to Repair” problem to me. Frustrated, but at least I have the accesibility home button working.

    bandman -

    Make sure the home button screws aren’t overtightened; that often causes issues. If there’s any damage to the button cable, a repair shop with a skilled microsolderer can patch a new cable on and restore functionality. iPhone 7 home button not working after screen replacement? Worst case scenario, you can also buy a screen repair from Apple, and they’ll include a new home button. I am not a lawyer, but the response you’re describing from the AASP sounds way out of bounds. Good luck!

    Jeff Suovanen -

    I don’t know why this step does not include a major warning about it being by far the most challanging step. I started before reading the comments and most likely screwed my home button with it,

    I don’t know if it is a broken cable or if it was too much heat later…but I scratched the cable on the first try with the plectrum. It took lots of heat to soften the adhesive and then it worked WAY better for me to start removing the connector from the near side of the home button. And not, as shown, on the far side.

    Wish I had known that before - the homebutton ist not working anymore now (and it’s not the screws).

    Robert -

    Just keep in mind that this is a very delicate step that requires a lot of patience. the part is attached to the body of the phone so firmly and there is no gap to put the opening pick under. So the way I did it was applying a good amount of heat onto the part and not from behind. I did it constantly for 5 minutes, a few minutes at a time, then I pulled the connected up slightly (a little too much pressure on the pull and you will break the wire). Pull it constantly and If the heat has been enough to melt the adhesive, it should come off easily and slowly.

    ashkan eslami fard -

    Hi, a little thing to help : i heatened up and then insert a cutter blade to start. Work better

    Crasset Renaud -

    Okay the home button is connected, as touch id works, but I can’t get any motion out of it. I backed off the screws, but that didn’t help. What else can I try?

    kathwick2 -

    The home button on an iPhone 7 Plus doesn’t move at all. Anything you feel during normal operation is a small vibration from the Taptic Engine that tricks your brain into thinking the button is moving.

    markpetereit -

    Salve, vorrei un vostro aiuto, ho un problema con il tasto home (il tasto è originale preso dal vecchio display rotto) una volta sostituito il Touch ID funziona perfettamente (l’iPhone si sblocca e legge l’impronta digitale) il tasto invece no (il click per intenderci) cosa può essere? Grazie!

    bernabbo -

    I had to use the iOpener tool twice before the adhesive was soft enough to remove the cable with the pick.

    sschaffer -

    How do I get the home button out? I got the ribbon up.. just not sure how the button comes out

    Ash -

    Hi, i replaced the screen and home button, the home button was a bit difficult. When i turn on the Phone, touch id works fine but not home button function. Any idea ?

    Jim -

    More precisely, i was wondering if the home button could not work while touch idea does…

    Jim -

    Wow…I did a lot of praying during this step.

    tomnape -

    This was a very difficult step… I found using heat wasn't removing the adhesive for my home button. Found a video online that recommended using a playing card and a tiny bit of rubbing alcohol on the corner and slowly sliding it under. I was able to finally remove my home button using this tip.

    ryan pouliot -

    Heat via hairdryer applied for a solid 3 minutes worked for me.

    natjpollard -

    Thank the stars that I looked at these comments. I managed to do this and transferred the home button successfully. The pick is not good enough to do this job. The suggestion to use a new playing card helped. I also found that if you use a single edged razor to ply apart the bezel from the screen then when you apply heat with the heat gun the bezel will melt and bend a bit out of shape allowing you to use the playing card to lift the home button strip away from the bezel. The adhesive on the old home button strip was enough to stick it to the new screen bezel without having to buy new adhesive.

    David Gordon -

    Thanks for the tip on the new playing card and rubbing some isopropyl alcohol on the corner of the card! I also peeled back the metal plate on the broken screen to get that bracket out of the way for better access to the cable. After applying heat and slowly and steadily working up the cable with the card, the home button popped out in proper working order.

    Nick Nave -

    Given that the old screen was already broken. I cut away the part of the screen where the button is, this gave easy access to the side of the ribbon cable which made it simple to gently pry it up and separate it from the plastic case.

    Charles Hope-Lang -

  29. DGDL2EBBRV4MPKPP

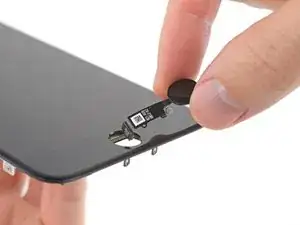

    • Entferne die Home/Touch ID Sensoreinheit, indem du sie über die Vorderseite des Displays herausnimmst.

    • Führe beim Zusammenbau zuerst das Kabel durch die Öffnung auf der Vorderseite des Displays.

    • Es kann sein, dass dein Ersatzteil mit einer zusätzlichen Y000 Schraube rechts vom Home Button ausgeliefert wurde. Diese Schraube ist überflüssig, entferne sie, so dass du die Halterung des Home Buttons wieder einbauen kannst.

    • Folge dieser Anleitung, um die Display-Klebestreifen anzubringen.

    True to this picture, the home button can only be removed (and put back in place) through the front of the LCD assembly.

    Talon -

    OHMYGOD! Thank. you for this! After ruining *three* displays while inserting the home button from the back, I finally saw this comment…

    In my defense I had no internet access through some of these replacements… but really, I’m sorry to say, this merits a MAJOR warning on the guide.

    Cam F -

    Very good comment Talon. That was the first thing I was looking for here. There should be a bullet point in step 24 - Carefully remove home button from front of display being careful not to damage cable.

    Tracey -

    Had an issue when putting the screen back on, the side where the cables attach would not sit flush. At first I thought the cables were pushing the screen up. Turned out to be the battery cable shield was just a fraction too far down toward home button. After loosening screws, nudging it up slightly and screwing back in, the screen sat flush as it should. In case anyone else has same issue.

    jbarry -

    Is there anything special about reassembling the "home" button ?

    I tried several times with several buttons but none works.

    Lambiel -

    must use original button

    Christa -

    My phone is no more turning on after I replace the screen, no reaction if I press home button or power button

    cheryl.iseli -

    Why doesn’t this tutorial also cover the earpiece assembly?

    James -

    This guide is missing the camera transfer and the stupid little black sticker on the earpiece assembly that causes the earpiece not to work if that sticker is not transferred. This guide is wholly incomplete

    Mason Schild -

    This guide is meant for the ifixit parts, not other third-party screens.

    Ben Carter -

    Since I bought the replacement screen from iFixit and it has NO camera and speaker part anymore, the replacement of those parts should also be in this guide.
    And, the replacement of those parts (camera, speaker, true light sensor, and aprox. sensor) is the most difficult!

    Hannes -

    James and @computermason—You’ll want to look up the correct guide for your repair, especially if you’re not using one of the kits for which this guide is designed. The guide for transferring all the smaller components is here.

    Jeff Suovanen -

    No home button functionality? I just watched a video on YouTube from two years ago saying that the iPhone 7 and 7+ have to be taken to an Apple repair center for the home button to work. Is this still the case? If so why didn’t you tell me this before I ordered this! Please confirm before I start warning everyone not to purchase from you!

    Gregory Haycock -

    @ghaycock If you’re replacing a screen, the home button will work fine as long as you carefully remove it from the old screen and transfer it to the new one, exactly as explained in the guide. The button itself can’t be replaced without help from Apple (which is why iFixit doesn’t sell home buttons for this model).

    Jeff Suovanen -

    @jeffsuovanen If you’re replacing a screen, the home button will work fine as long as you carefully remove it from the old screen and transfer it to the new one, exactly as explained in the guide. The button itself can’t be replaced without help from Apple (which is why iFixit doesn’t sell home buttons for this model).

    Jeff Suovanen - 06/11/2019

    Jeff Suoven-I bought a new home button from Ifixit for this phone (along with a digitizer assembly) and it doesn’t work.

    Jeff Steffens -

    One thing I don’t see mentioned is the replacement of the rubber gaskets that are on the pentalobe holes. The replacement screen did not come with these on it. I was able to remove them from the OEM screen, but there was no easy way to get them to adhere to the new screen. If they move just a little, you might not be able to properly thread the pentalobe screws. Worst case is that they fall into the body of the phone during this last step of re-assembly. At that point, you’ve already started to have the screen stuck to the adhesive, so you would need to redo the entire adhesive gasket.

    You can see the gaskets in this picture: https://d3nevzfk7ii3be.cloudfront.net/ig...

    Here they are near the new screen: https://drive.google.com/open?id=14FwpSB...

    Andre LeBlanc -

    Thank you! I was wondering what those things did, and even lost one but later was lucky enough to find it.

    Ben Carter -

    I saw one mention about those small gaskets in a guide and now I cannot find it. I was able to slip them off the old screen and onto the new one. I would think this is an important step to help seal those holes for the waterproofing. They should edit these screen replacement guides to include this step. Thanks for mentioning it in this guide.

    sschaffer -

    If your home button doesn’t work after transferring to the new screen you might have a faulty screen. I spent a lot of time chasing all the suggestions here, but eventually resolved the issue by installing a replacement screen.

    nigel -

    WARNING: When you reassemble the phone, the little screws… You have to be VERY careful to not put any pressure on them until they’re really well seated, otherwise you will flick the screws into another dimension… they’re so small they literally just vanish out of existence lol. I ended up losing two of the smallest screws, one per bracket, and everything seems fine so far.

    The glue/seal is also nearly impossible to get right. Just mash it down into the general area that it belongs if it gets stretched/twisted and can’t go in perfectly. Some glue is better than no glue, just assume that any repaired iPhone isn’t water resistant at all.

    Nicholas Tenney -

    The biggest issue I'm having now Is replacing the gasket that goes around the home button. The original one got stretched out and the new on is too thick to seat correctly into the hole without being exposed and potentially coming off of the home button after a while.

    Eric R Deshields -

    I ordered a replacement screen from ifixit, but contrary to the description it arrived without the ancillary parts attached. So I had to transfer the front camera & sensor assembly, and the lcd shield. In case anyone else needs to do this, be sure when transferring the lcd shield that the screen cable sits properly underneath it (ie as far up towards the top of the screen as possible) or else the rectangular block on the cable will foul the loudspeaker.

    If this happens, the bottom right corner of the screen will stand very slightly proud of the case, and you will end up with a pressure spot on the screen.

    See Pressure spot on iPhone after screen replacement..

    Neil Wilson -

    Well I transferred all the parts properly, but the front camera wasn’t working. Reseating it fixed the camera but then when I closed the screen it cracked. I backed out to the old screen which is held together by tape, but miraculously everything including the camera and Touch ID is fine. Better luck next time.

    jack jones -

    I did not realize that the much cheaper 3rd party replacement I purchased also required the further steps of removing and replacing front facing camera and speaker. I was pretty bummed initially as it looked intense…however i totally pushed through using another ifixit guide and saved $50. My only advice to a first timer would be get a $15 heat gun or the bean bag microwave thing, the hardest part is getting it open.

    Cramps Delight -

    The cable is more than fragile and immediately broke right off my phone! Mine is no good anymore, but I wanted to warn everyone else just one more time…BE SO SUPER GENTLE and PATIENT…and even then, I’m not totally convinced that it is possible!! I was doing so well, right up to the point when I got to the one part that only Apple can fix and that will totally ruin your repair!!! SHAT!!!

    Good Luck all!!!

    jenn ross -

    I don't understand whether I need to glue the ribbon back down on the new screen. I have not been sent any adhesive for it. The guide mentions replacing adhesive for the screen, but do you mean the home button ribbon itself? If so, what should I use?

    charlie B -

    I can’t get the home button to stay in place when reataching it to the phone. Anyone know what I’m doing wrong?

    johanbogg -

    The ribbon in steps 16 and 17, when reconnecting and sealing the phone, is really something to be careful with. I feel like I smooshed it in, and while the phone works after the replacement, I feel like the right side of the phone, near the power button, isn’t quite set in 100 properly. I wish I would have taken better note of how it looked prior to removing the broken screen. Hopefully, it will settle in better once the adhesive sets. At this point, however, the fact that I got through the process with what I would call 99% success is a win for me. Just be careful of the aforementioned ribbon when setting the new screen on.

    Mike K -

    So I put the home button onto my new screen and the touch ID works however, when you press down on the button to return home for example, it doesn’t work. Any ideas what might be causing this? I made sure not to tighten the screws too much when reinstalling.

    Hayden -

    The home bottom sensor cable does not plugin into the new screen, if put it back to old screen it plugin nicely and directly , but on the new screen it does not stay, it does not plug in the new screen, what to do?

    mohamed elzaiady -

    The comments suggest the home button is well stuck down.

    Does the home button need adhesive to stick it back onto the new screen? If so, what do you use/where do you get it?

    Thanks

    Andrew Murtha -

    Very disappointed. Front camera and home button not working. And overheating too. I would like a refund Ifixit.

    Xavi Rojas -

    Esta incompleto, falta el desmontaje de los elementos de la parte superior de la pantalla

    Alfredo Alvarez -

    Did this back in 2021 after using i fix it tutorial on replacing battery i accidentally cracked screen when trying to pry it up with suction device and using spudger which felt wasn’t best tool for the job.

    Maybe i didn’t heat up device enough to loosen adhesive enough, who knows it was the first time doing this.

    Screen alone much easier than a battery replacement, especially second time around after cracking screen had more awareness of job.

    They make good tutorials here always like fixing thins myself then paying more to have someone else do it.

    DJSan -

Abschluss

Vergleiche dein Neuteil mit dem Originalteil. Möglicherweise musst du fehlende Bauteile übertragen, oder Schutzfolien vom Neuteil abziehen, bevor du es einbauen kannst.

Befolge die Anleitung in umgekehrter Reihenfolge, um das Gerät wieder zusammenzubauen.

Entsorge deinen Elektromüll fachgerecht.

Hat die Reparatur nicht den gewünschten Erfolg gebracht? Versuche es mit einigen grundsätzlichen Lösungen, oder finde Hilfe in unserem Antwortenforum.

Tinte & Feder

Paige Reisman

Mitglied seit: 07/04/14

23230 Reputation

15 Kommentare

Correct, and that is also stated in the introduction. This guide is primarily for folks who need to transfer the home button onto a new/replacement display. So Jeff if I'm transferring button to a new display will I retain Touch ID functionality? Or would it be lost? My screen is cracked and I want to replace it. Thanks.

Victor Rodriguez -

Yes, if you carefully move your original home button to your new display, it should be good as new, Touch ID and all.

Jeff Suovanen -

Can the home button not be removed through the back? Does it only come through the front?

Talon -

You can replace the home button but your touch ID wont work anymore. Apple has it coded with your logic board. once you remove it yes, the home button will work well but you can't use the touch ID.

Rachelle -

Hello,

The home button was cracked with keys in my pocket when it cracked the home button is started to heat when screen is turned off , when i use with display turned on the home button we not heat, Am wondering what could be wrong,

Any suggestion is appreciated

Does home button will work? after replacing with after-market home button, i just want know any one tried it?

i know touch id will not work.

Recently i have replaced the home button with after market, the phone will not boot up, just flashing with apple logo.

after replacing original it worked for me.

kishore.k kishore.k -

home screen by itself the estimate is $ 169 but “other” damage is estimated at $ 349 (US dollars)

Erwin Tieng -

@jeffsu , replacing a button outside Apple will allow me to use the iphone with the assist or not at all?

Dorian Gray -

You can always use Assistive Touch (virtual/on-screen home button). Outside of Apple, replacing the physical sensor/button will restore your button “click” function, but not Touch ID.

Jeff Suovanen -

hey when i try to replace my home button it dosen’t click or work at all when i try to use it any suggestions?

Pineapple Gots Memes -

I bought Home button for iPhone 7 Plus but not working

help my, what I do?

Hamad Almagrabi -

I’m wondering how this button actually works with regard to responsiveness. I just replaced my 7+ screen with an Ifixit screen but I have used a cheap $10 Amazon home button as I messed up in the screen replacement process!

It seems that the cheaper home buttons work but they are sometimes unresponsive and indeed the button that I have now seems to work OK , obviously no touch ID, but it appears not to work at all on occasion and at other times seems to have a delay associated with it. So my question is is this the case with the $25.03 / 3x times the price I fix it button? I’d probably be willing to spring for the price the home button if I knew it worked exactly the same as the Apple one says touch ID.

buy -

I just changed the home button of my iPhone 7 Plus and it still doesn’t work. Any ideas what else could be the problem?

Sadly I bought my iPhone with the broken home button and after reset I can’t start it because i’m stuck at the welcome screen “press home button to open” so I can’t activate assistive touch because i’m stuck before I can start the setup. any workaround for this?

Oskar Ott -

Can a home button be bought from apple with the touch ID if so where? Can the after market home button be programed?

Richard Velasco -

i need to replace the o-ring/seal for the iphone 7 home button. can you tell me how to properly seat/install the seal on the button before inserting it back into the screen assembly?

Thanks

B C -

زر لا يعمل ولاكن بصمه تشتغل

ali_war1990 -
