iRobot Roomba 692 Brushes Replacement

Geschrieben von: Demi Muyuela
  • Kommentare: 0
iRobot Roomba 692 Brushes Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

2 Minuten

Einleitung

This guide will teach you how to access, remove, clean, and replace your iRobot Roomba 692 brushes. If you are completely replacing the brushes, ensure that you have the right brushes for the Roomba 692.

Remember to review the iRobot Roomba 692 Troubleshooting Page before attempting any maintenance or repairs on your vacuum.

  1. X2LWpKv2WlXwJjIq
    X2LWpKv2WlXwJjIq
    jufqcQ2tsUpXojyM

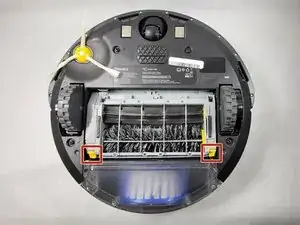

    • To access the iRobot Roomba 692 battery compartment, flip your iRobot Roomba 692 upside down.

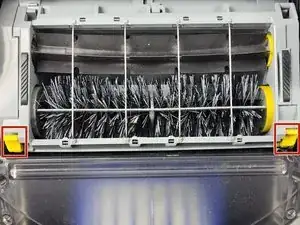

    • Press on the yellow tabs on the corners of the brush guard.

  2. GUUmWQaVsk5PxVCl
    GUUmWQaVsk5PxVCl
    G2sIftwbIIij26CD
    yQYmokQARkhyZRa4

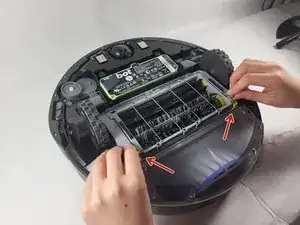

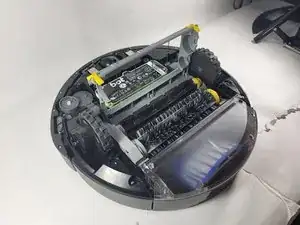

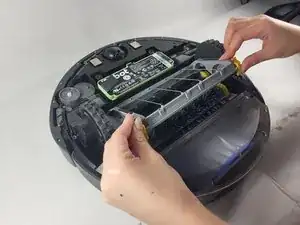

    • Push both yellow tabs, and lift the brush guard.

    • When replacing brushes and closing the guard, ensure the brush guard clicks back into place.

  3. wPlwGfQnh1fTtSGA
    wPlwGfQnh1fTtSGA
    pG3qLiIkIS6bLpJp
    OBVXwQ1k1Vv3EbFF

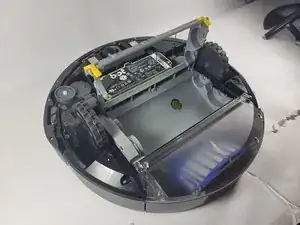

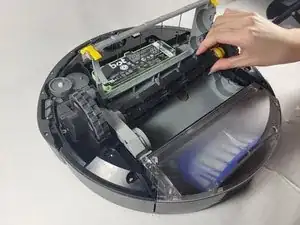

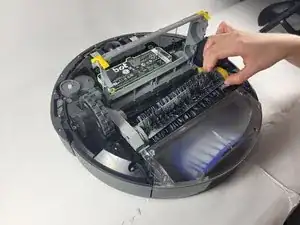

    • Hold each brush from the yellow end and pull each up and out of the compartment.

Abschluss

To reassemble your device, follow these instructions in reverse order.
