Surface Laptop Studio Lower Case Replacement

Geschrieben von: Connor Bassolino
  • Kommentare: 0
Surface Laptop Studio Lower Case Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

Use this guide to replace the lower case on your Microsoft Surface Laptop Studio.

  1. disBkJLYKsWyOnFC

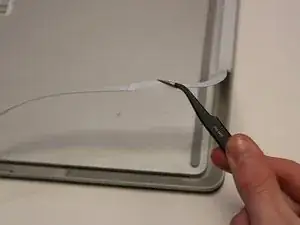

    • Remove the rubber cosmetic strip along the outside edge of the back plate with tweezers.

  2. DymSIV2GPBF4IXwp
    DymSIV2GPBF4IXwp
    lkFYS5RPvf51M4NF

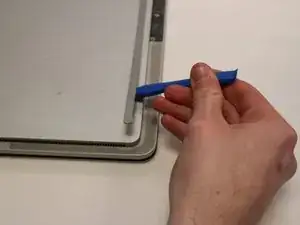

    • Remove the two rubber feet on the lower case with an opening tool.

  3. BQeCc2EHYUb4frIq

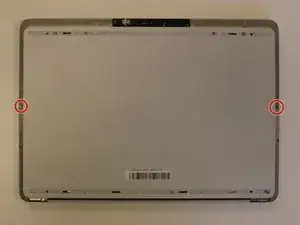

    • Remove the two screws with a T3 Torx screwdriver.

  4. c3A3HPFhTiu26TnT

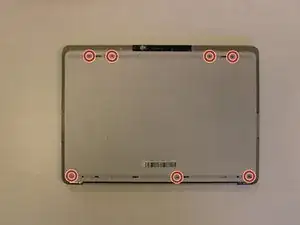

    • Remove the seven screws securing the lower case with a T3 Torx screwdriver.

  5. kRIiVor6o5EqdNoD
    kRIiVor6o5EqdNoD
    diJVsnGVIsMcPrlE

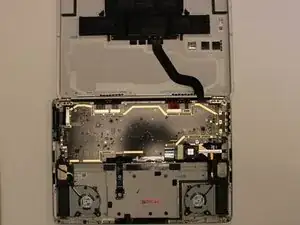

    • Lift the lower case gently and set it above the device.

    • Take care not to strain the battery cable as you move the lower case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
