Revlon One-Step Hair Dryer Brush Disassembly

Geschrieben von: Xochitl Sandoval
  • Kommentare: 3
Revlon One-Step Hair Dryer Brush Disassembly

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

Teardown of the Revlon Hair Dryer Brush

  1. QKtxQeLhOxJJuGCk

    • Pull Pink Tabs

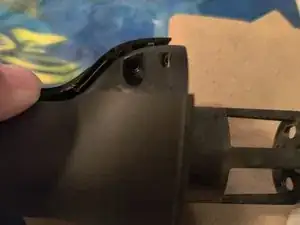

  2. lsM1L3PJ3YU1THol

    • Remove the Two Phillips screws, one on each side.

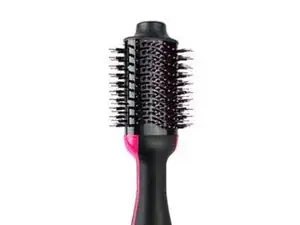

  3. 3xITdx3VvYjZdO3G

    • Pull Hair Brush Portion

    Do not pull apart the halves of the handle portion.

    Xochitl Sandoval -

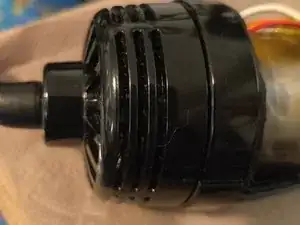

  4. 5oYJM5DJATH52KCY
    5oYJM5DJATH52KCY

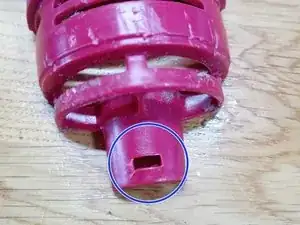

    QDLXIgwHnIfhWvPI

    • Twist and pull the Air Filter to remove. It is held in place by two lugs and holes (Circled blue on photo). Quite difficult to remove but it will come if enough force is applied

    • Slide the Power Indicator/Ring.

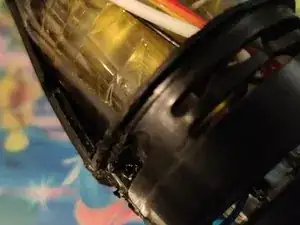

  5. K2Ajp6bqifcdaXjD

    • Remove the Two Phillips screws, one on each side.

    Now remove the handle portion of the dryer.

    Xochitl Sandoval -

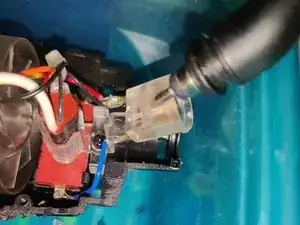

  6. OFtn1ReSGFP4LBHI

    • Remove Power Cord

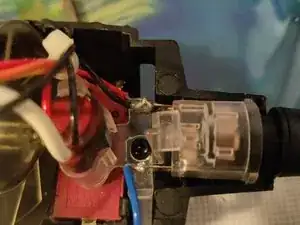

  7. mNEXWH5THjOeFOQZ

    • Remove final Philip screw.

Abschluss

To reassemble your device, follow these instructions in reverse order.
