RCA 10 Viking Pro RCT6K03W13 Antenna Replacement

Geschrieben von: Ryan Wickett
  • Kommentare: 1
RCA 10 Viking Pro RCT6K03W13 Antenna Replacement

Schwierigkeitsgrad

Difficult

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

  1. BQ2AWdrxZSoSTYKv
    BQ2AWdrxZSoSTYKv
    PnlAaXBUEvbNyFOl
    1YjWXN1I3HRcPbVP

    • Remove the three Phillips #00 screws at the bottom of the device.

  2. Er6DELMh1SdNZUTK
    Er6DELMh1SdNZUTK
    cGtDxPqJjbpxLjiA

    • Remove the two Phillips #00 screws to the left and right of the keyboard connector.

  3. ChyRCHWYdAp5rkYT

    • Pull on one of the bottom corners to begin to pull off the back plate.

  4. imfYCjACjMCbXC2A
    imfYCjACjMCbXC2A
    TFtmFvOOeLVOXtns

    • Work around the outside of the chassis, using the spudger to pry the backplate off.

    • After doing this for about half the device, the backplate should pop right off.

  5. BYVLbbjlE1TFXIwm

    • Identify the grey wire on the right side of the device.

  6. rwxMwIAcu2sCeQLb

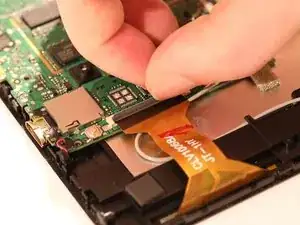

    • Remove the orange ribbon cable over the wire.

  7. 5oZYVPS1WEqOcsFU

    • Remove the antenna using a soldering iron.

Abschluss

To reassemble your device, follow these instructions in reverse order.
