LaCie Rugged USB-C Hard Drive Replacement

Geschrieben von: 9021007
  • Kommentare: 1
LaCie Rugged USB-C Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

8 Minuten

Einleitung

  1. RN3k615fDQlHQTEW
    RN3k615fDQlHQTEW
    1OeSkCseHEFiYhSu
    jQJJWXIWepeNtfKM

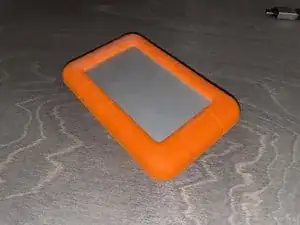

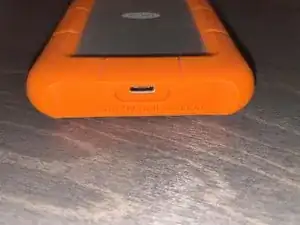

    • This guide contains steps for the LaCie Rugged USB-C. There is no guarantee that the steps will be the same for different models.

  2. NEcaQj55FlTBaiUK
    NEcaQj55FlTBaiUK
    wAABDMQlNxYDrI1b

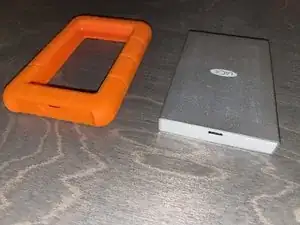

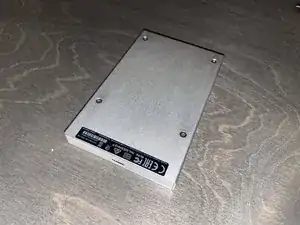

    • Remove the rubber case around the drive. You can just stretch it off.

  3. H3oF4Ru3v1Ot5cAF
    H3oF4Ru3v1Ot5cAF
    dgHIVrJjHPRDXSkI

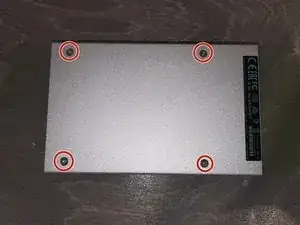

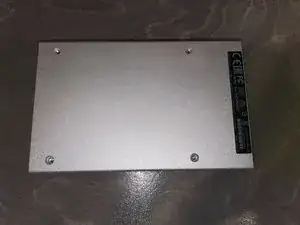

    • Remove these 4x Torx T8 screws

  4. qSGWYtaWQbrFEn1G
    qSGWYtaWQbrFEn1G
    jUOSF2GeY15gWygf

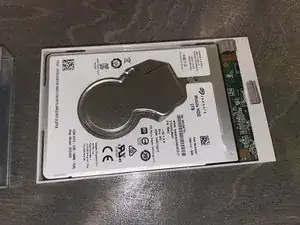

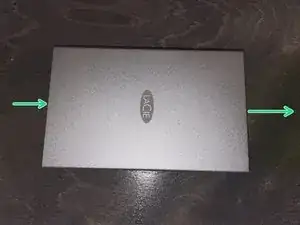

    • Push on one side of the drive, where the white plastic is. Which side does not matter.

  5. hbwVdU1wGdEpuYbK
    hbwVdU1wGdEpuYbK
    mMXrLObymc4nN6aX

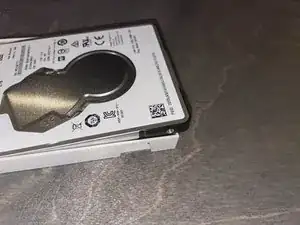

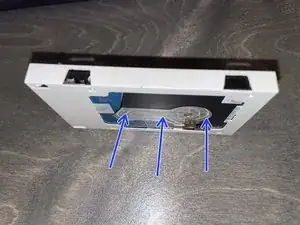

    • Push GENTLY on the back side of the hard drive.

    • DO NOT push more than is necessary to get the drive above the white plastic, as shown in the second picture.

  6. eApkl5VO2JLyHC2t

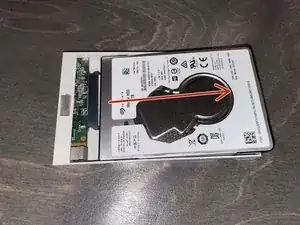

    • Pull the drive gently out of the SATA connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
