KYVOL CYBOVAC E20 Battery Replacement

Geschrieben von: Abraham Burciaga
  • Kommentare: 0
KYVOL CYBOVAC E20 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 8 Minuten

Einleitung

The Kyvol Cybovac E20 contains a 3200mAh lithium-ion rechargeable battery. This guide should be used to replace your battery if your device:

  • Fails charging
  • Will not hold charge
  • Will not turn on

  1. CLjM46XX5J41rSBo
    CLjM46XX5J41rSBo
    OMtj6gTRS61bgde1

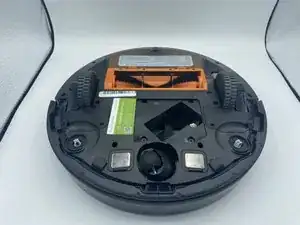

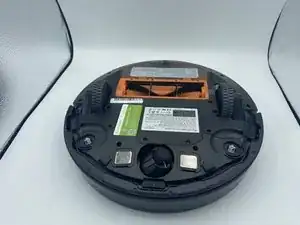

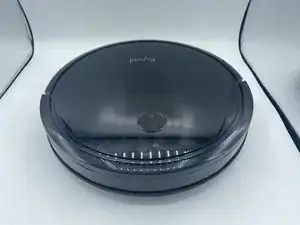

    • Start by laying the device on a flat surface with the logo facing up.

    • Flip the device over.

  2. RlKo2cgsuvmWpWsd
    RlKo2cgsuvmWpWsd
    qfMquyeMZbIPtexl

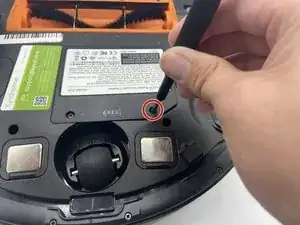

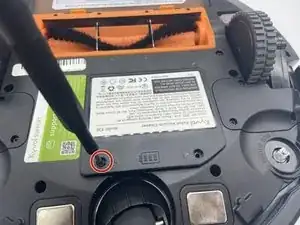

    • Remove two 1 mm screws using a Phillips #00 screwdriver.

  3. CObBS5vwhIXDgbgS
    CObBS5vwhIXDgbgS
    fsBM1ACJmWm4VVFa

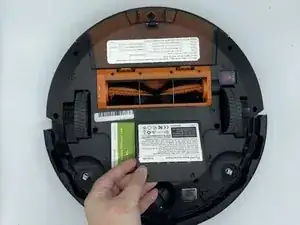

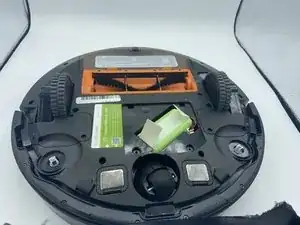

    • Remove the cover.

  4. VTwsJtnE1RtMeKLa
    VTwsJtnE1RtMeKLa
    UVCM1Enly3mjfNVG

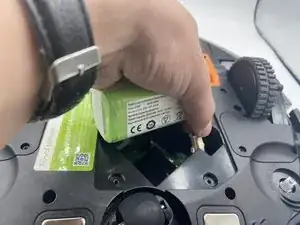

    • Lift the battery.

    • Press down on the top of the white connector.

    • Remove the battery from the vacuum.

Abschluss

To reassemble your device, follow these instructions in reverse order.
