Insignia NS-CLIP02 Speaker replacement and troubleshooting

Set the clock radio on the work space so the bottom of the device is showing.

Use a metal spudger to peel back the adhesive sticker on the bottom of the clock.

Using a plastic opening tool, peel off the adhesive gel stoppers.

Use a Phillips screwdriver to remove the six 11 mm screws on the bottom of the device.

Remove the bottom cover from the device to reveal the motherboard.

Use a Phillips screwdriver to remove the 9.5 mm screw located near the center of the motherboard.

Lift the motherboard away from the device.

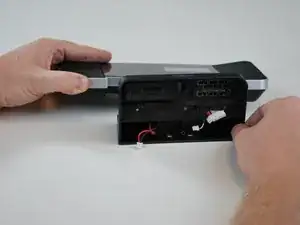

Disconnect the four cables connecting the motherboard to the device.

Remove the three screws located along the center of the base.

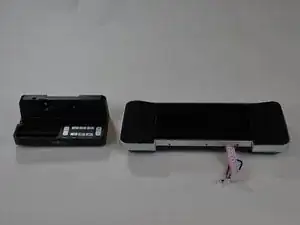

Remove the base from the display.

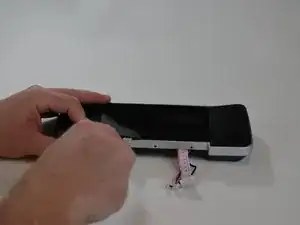

Using a metal spudger, remove the plastic face plate from the display.

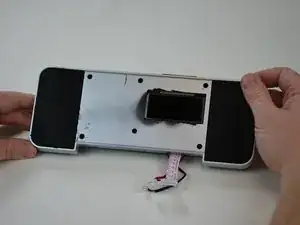

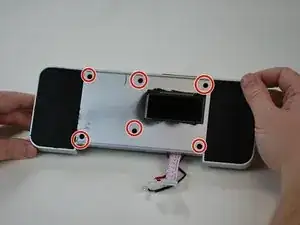

With a phillips screwdriver, remove the six screws shown pictured to the left.

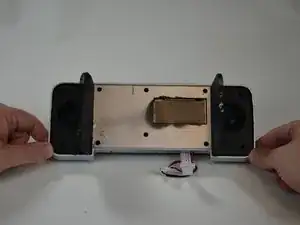

Using the metal spudger, pry the speaker grilles from the display.

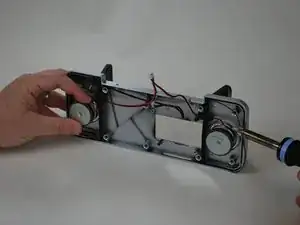

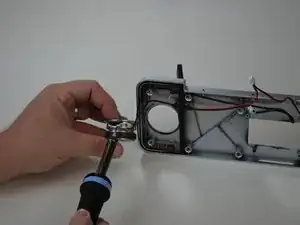

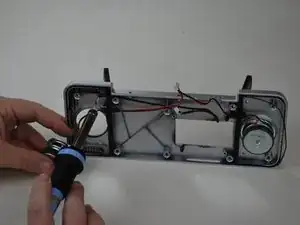

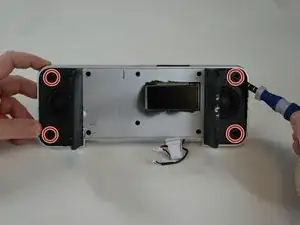

Using the phillips screwdriver, remove the four screws pictured to the left.

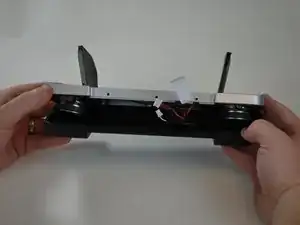

Separate the two pieces of the display as shown.

You can see that there are several points where connections to the speaker are soldered.
