How to Tune Single Pivot Caliper Brakes on a Schwinn Solara

Geschrieben von: Charles

Kommentare: 1

How to Tune Single Pivot Caliper Brakes on a Schwinn Solara

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

20 Minuten

Einleitung

This guide will give an in-depth demonstration of how to tune single-pivot caliper brakes on a Schwinn Solara bicycle. In addition, our project shows tips and tricks with important cautions during disassembly.

Werkzeuge

10mm Wrench

Schritt 1

Set bike up on bike stand or have someone hold onto the bike, keeping it balanced.

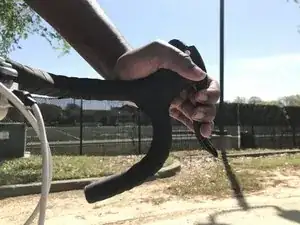

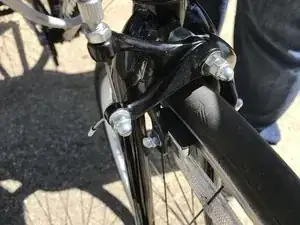

Pull on brake levers so that the brakes pads are touching the edge of the rim.
If the top edge on either side of the brakes are misaligned with the top edge of the rim, your brake calipers will need to be tuned.

Schritt 2

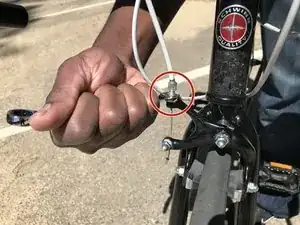

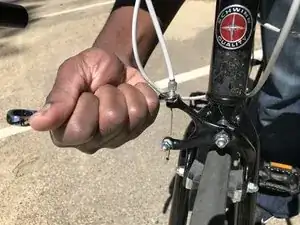

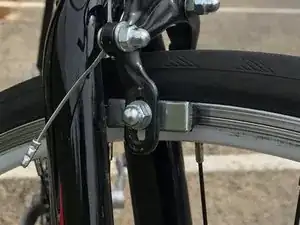

Using a 10 mm wrench, back out of the barrel adjuster on the brake calipers 2-3 turns.

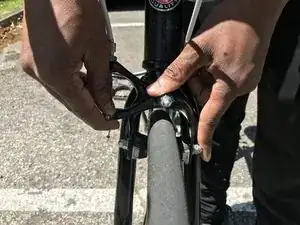

With the same 10 mm wrench, loosen the pinch bolt at the bottom of brake caliper to release the brake wire.
Loosening the pinch bolt is optional.

Schritt 3

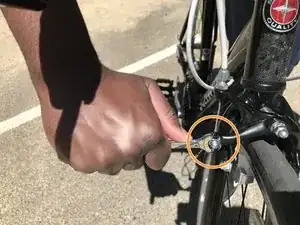

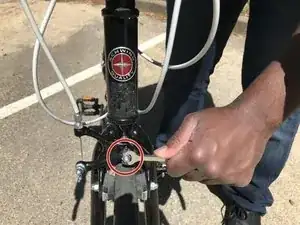

With the 10 mm wrench, loosen the bolt connecting the brake caliper to the frame of the bicycle.

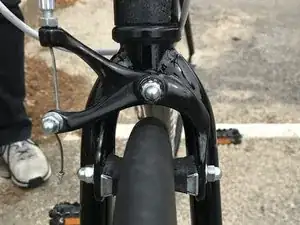

Adjust the brake caliper so that it is centered with the tire and rim. Tighten bolt back up when finished.
You may have to repeat this step a few times to ensure the caliper is centered with the tire and rim.

Schritt 4

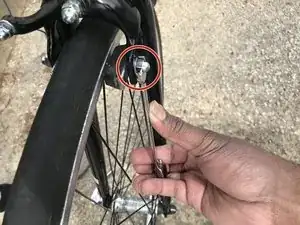

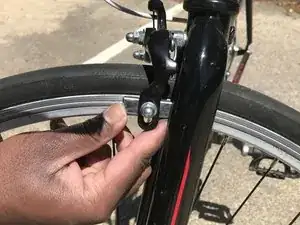

Take the 10 mm wrench and loosen the bolt on the back side of the brake pad.
Adjust the brake pads position on the rim by sliding it up and down along the surface of the rim until it is centered.
When finished, tighten the bolt for the brake pad back up to hold its position.
Adjusting the brakes may take several attempts.
The brake pad should not touch the tire at all.
