HP LaserJet P1102w Printer Feed Spring Replacement

Geschrieben von: Jerome Etten
  • Kommentare: 1
HP LaserJet P1102w Printer Feed Spring Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

7 - 10 Minuten

Einleitung

These steps will show how to replace the paper feeding housing and the spring from the housing.

  1. IWBYVTgWsBPSCEnN
    IWBYVTgWsBPSCEnN
    45VrHiWRPrykRXYA
    bgJBiLxOb2nZ22bl

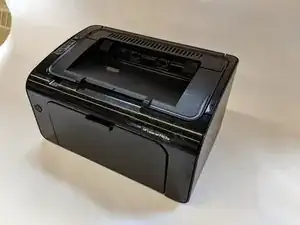

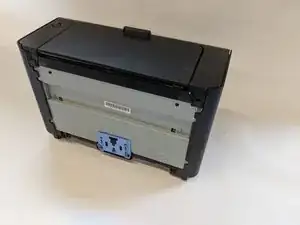

    • Flip printer on its back to expose the paper feeder housing.

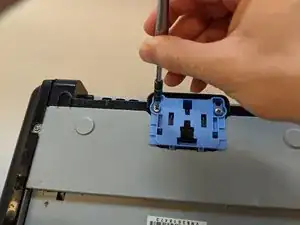

  2. ktJxqtnPPxuAaIgu
    ktJxqtnPPxuAaIgu
    FoJqNAx6gCpUAbWM
    vmN3V2ARTIjiWPCQ

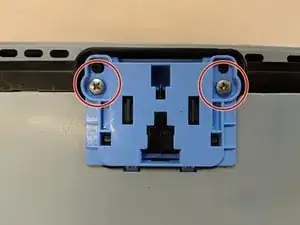

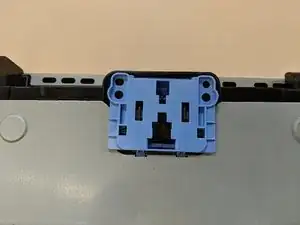

    • Remove both of the #1 Phillip 10 mm screws.

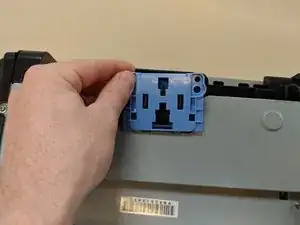

  3. YFl5ZYrKQgGR6fcN
    YFl5ZYrKQgGR6fcN
    nqqXej5ASRBNVKlh
    J4DdePxTESLfANkW

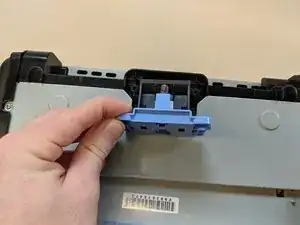

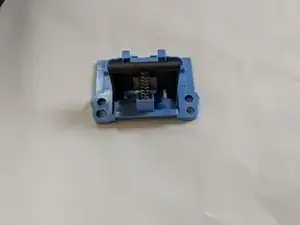

    • Now with both screws out, remove the paper feeding housing from the printer.

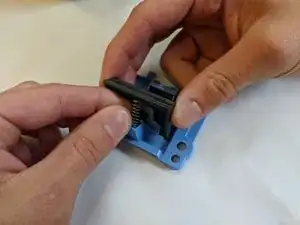

  4. cO3Iy6C2WuZYiDiE
    cO3Iy6C2WuZYiDiE
    yFIIeDwWJxkTrTvU
    ahDbXMsLRVZgpVZQ

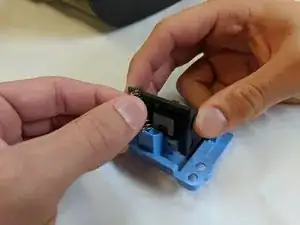

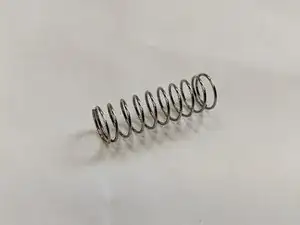

    • Compress and remove spring from paper feed housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
