FDHD Floppy drive Disassembly

Geschrieben von: Thomas
  • Kommentare: 0
FDHD Floppy drive Disassembly

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 20 Minuten

Einleitung

Hello this is actually a cleaning for an FDHD Drive but since they didn’t have an option for cleaning I picked disassembly.

  1. EoY1gLnYHdjMIwuk

    • It’s best to pull Down and twist to pull the spring off

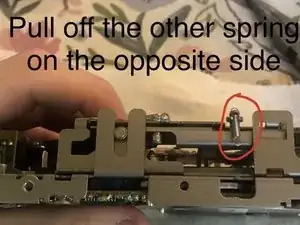

  2. lg4Ec55sl1R2MdUd

    • Once again pull and twist movement

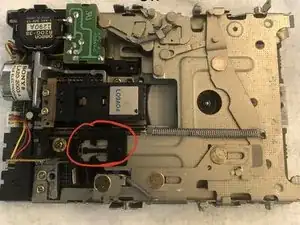

  3. 1heMlI2sJ5KJxIZV

    • lift up on the really tiny tab with a flat blade screwdriver and slide it off

  4. Push Down

    • Push Down

  5. It may seem a little bit tricky at first but only push the ejection lever about halfway in

    • It may seem a little bit tricky at first but only push the ejection lever about halfway in

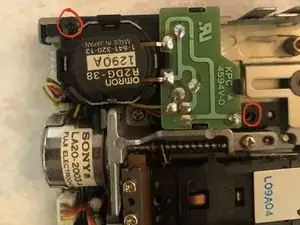

  6. YDtlioEedBTuIWMQ

    • Remove these two screws and lift off the motor

    • Note: I did not have the second screw.

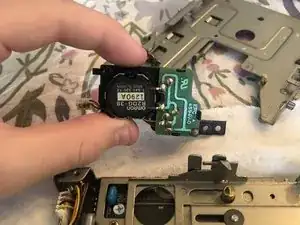

  7. JxuirUGZgSx3ws2I

    • Unplug the motors 3-pin connector to make it easier

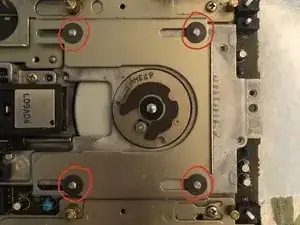

  8. QRIDusHRFOHgkBf6

    • Insert wisdom here.

  9. Insert wisdom here.

    • Insert wisdom here.

  10. Thank you for using my guide just clean any places where metal touches metal and reassemble

    • Thank you for using my guide just clean any places where metal touches metal and reassemble
