Dell Vostro 2520 Memory Module Replacement

Geschrieben von: Johnathan Hammond
  • Kommentare: 0
Dell Vostro 2520 Memory Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

8 - 20 Minuten

Einleitung

In this guide, we will show you how to remove and replace the Memory Module.

  1. dP2HreN3PwLkoAjC

    • Slide the release latches to unlock the battery.

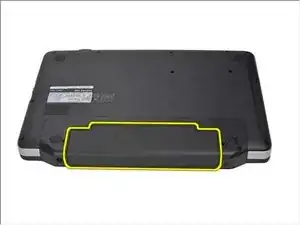

  2. BT16pQZAVFHkuSfE

    • Slide the battery and remove it from the computer.

  3. SCthsTGQWrOOZxd3

    • Pry up to release the tabs securing the keyboard to the computer.

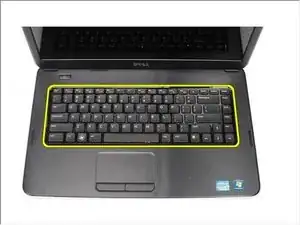

  4. rMAZRUcGIHf1WTNc

    • Flip the keyboard and lay it on the palm-rest.

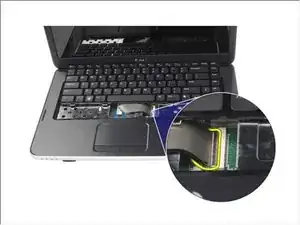

  5. a1iHobvdwPyZ2Dpb

    • Disconnect the keyboard cable from the system board.

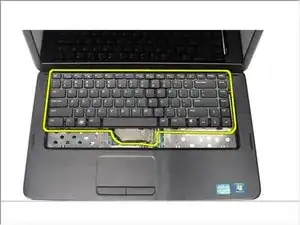

  6. NSpcQA1DAkURAPaq

    • Remove the keyboard from the computer.

  7. O1YbMQbpNPrWUoNr

    • Pry the retention clips away from the memory module until it pops up.

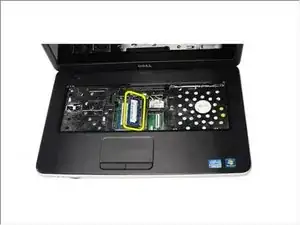

  8. YlaG5BmUKZL2OqGZ

    • Remove the memory module from the computer.
