2004 Toyota Sienna Sliding Door Motor Replacement

Geschrieben von: eCuration
  • Kommentare: 1
2004 Toyota Sienna Sliding Door Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide will show you how to diagnose and fix the common issue with the 2004-2010 Toyota Sienna sliding door.

The repair is easy but patience is a must as you do not want to strip the screws.

  1. ktQAd42wsZgZXEUS

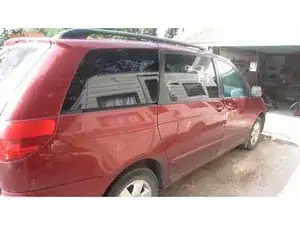

    • First, test both sliding doors to identify the problem with the driver's side door

    • source.

  2. AuZ3JTLqtePoFdVZ

    • Remove the second-row seat to access the door panel

    • source.

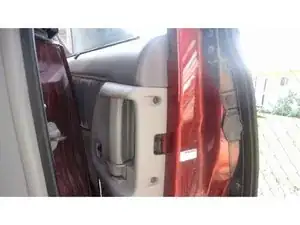

  3. tWaSbTVX4xSRjeiZ

    • Remove the two Phillips screws holding the door panel in place

    • source.

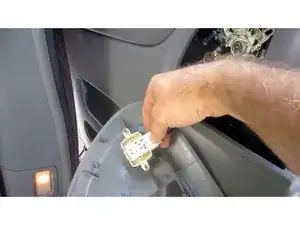

  4. KIE3DniWHsnbQQEQ

    • Carefully remove the door panel by lifting it out and disconnect the power window

    • source.

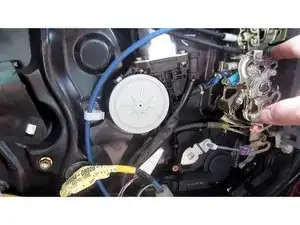

  5. XGWaXbDyjxpP2RG1

    • Close the door and observe the actuator motor on the working passenger side door for comparison

    • source.

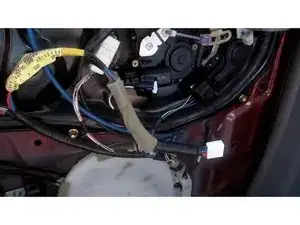

  6. RCPa13YZCFIPk1fo

    • On the driver's side door, test the voltage to confirm it's an issue with the actuator motor and not an electrical problem

    • source.

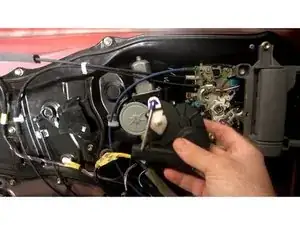

  7. NwqepAeiKpPZ5U5V

    • Order a replacement actuator motor (Part #s in the video) and wait for its arrival

    • source.

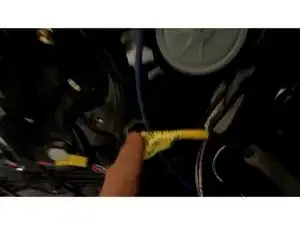

  8. iHG2wwRnDRHXi1Ub

    • Remove the window regulator by lowering the window and accessing the bolts through the portholes

    • source.

  9. jTyrTkIMfdUMf65u

    • Remove the actuator motor by grinding off the stripped Phillips screws with a Dremel tool or using vice grips

    • source.

  10. TAMCXmZUNmZHvayp

    • Replace the actuator motor with the new part, using socket screws from wall sockets or light switches if necessary

    • source.

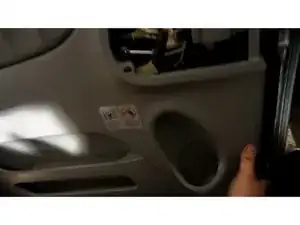

  11. YsySxaAVPYLyT4Pi

    • Reassemble the window regulator and test the window function

    • source.

  12. JvCvocQTSG23SNxw

    • Test the sliding door in manual mode and then in power mode

    • source.

Abschluss

To reassemble your device, follow these instructions in reverse order.
